ABSORBER CONTROL ACTUATOR (for Front Side): Components

Fig 1: Identifying Absorber Control Actuator Components (1 Of 2)
G05296534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

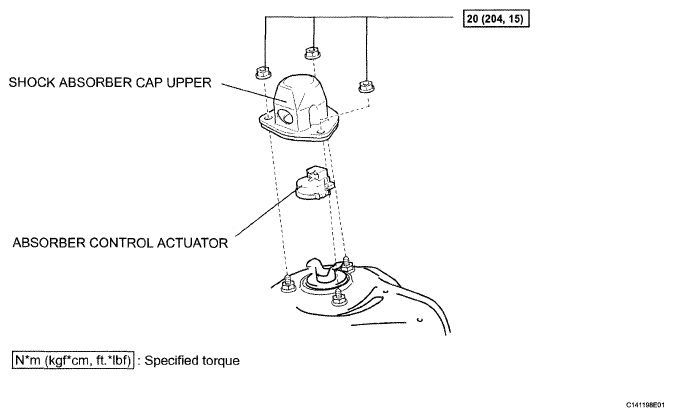

Fig 2: Absorber Control Actuator Replacement Components With Torque Specifications (2 Of 2)
G05296535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
