DCC Fuse Installation During PDS (PD047-06)

Publication date: 2006-08-08
Reference number: PD047-06

DCC FUSE INSTALLATION DURING PDS

DCC FUSE INSTALLATION DURING PDS

TECHNICAL SERVICE BULLETIN

Reference Number(s): PD047-06, Date of Issue:  August 08, 2006
LEXUS: 2007 GS 350 & GS 430
Section: PRE-DELIVERY SERVICE
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

The DCC fuse (20A) has been removed from the GS 350 and GS 430 at the assembly plant to reduce parasitic draw during transportation and storage.

The DCC fuse is stored in the blank space of the relay block in the engine compartment and must be reinstalled to its original location during Pre-Delivery Service (PDS).

Applicable Vehicles

Warranty Information

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
N/A Not Applicable to Warranty - - - -

Installation Procedure

  1. Push the core of the clips of the cool air intake duct seal and remove the clips. Then remove the cool air intake duct seal.

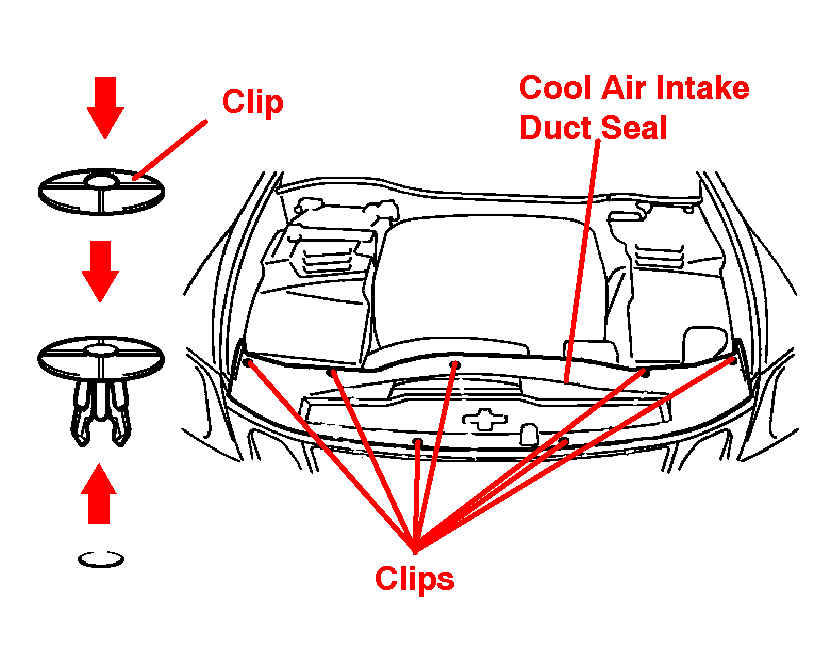

    Fig 1: Identifying Clips Of Cool Air Intake Duct Seal
    G04577378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Push the core of the clips of the engine room side cover and turn the plastic nut by hand until it turns freely. Then loosen the clip and remove the engine room side cover.

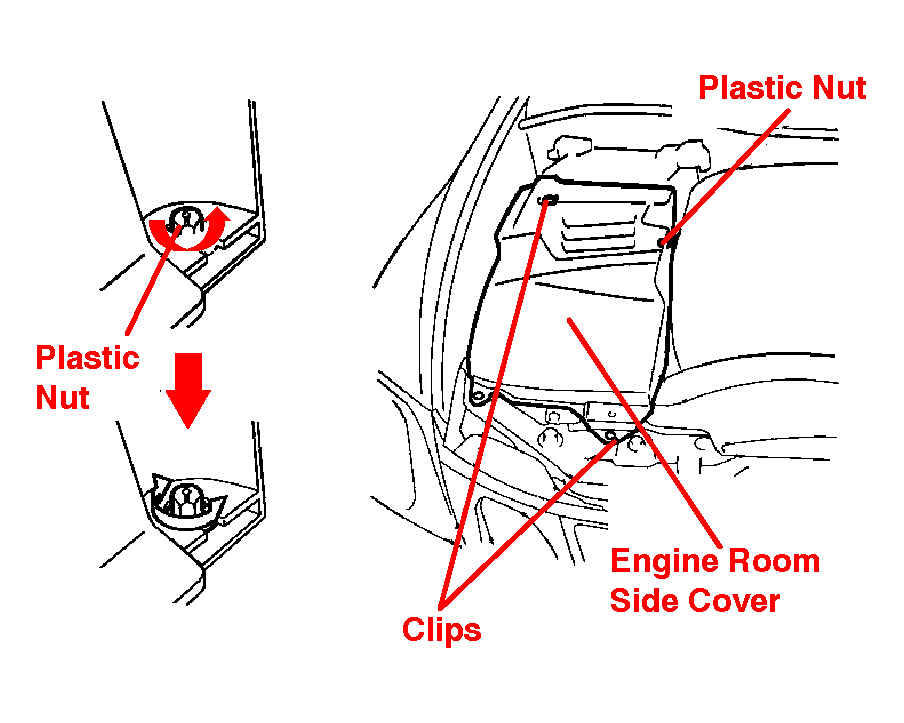

    Fig 2: Identifying Of Clips Of Engine Room Side Cover
    G04577379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Make sure that the wheels are pointing straight ahead and the steering wheel is centered before installing the DCC fuse.
  4. With the ignition switch OFF, install the DCC fuse in its original location in the engine room relay block.
    NOTE: Steps  3 and  4 are necessary to perform the VGRS initialization correctly.

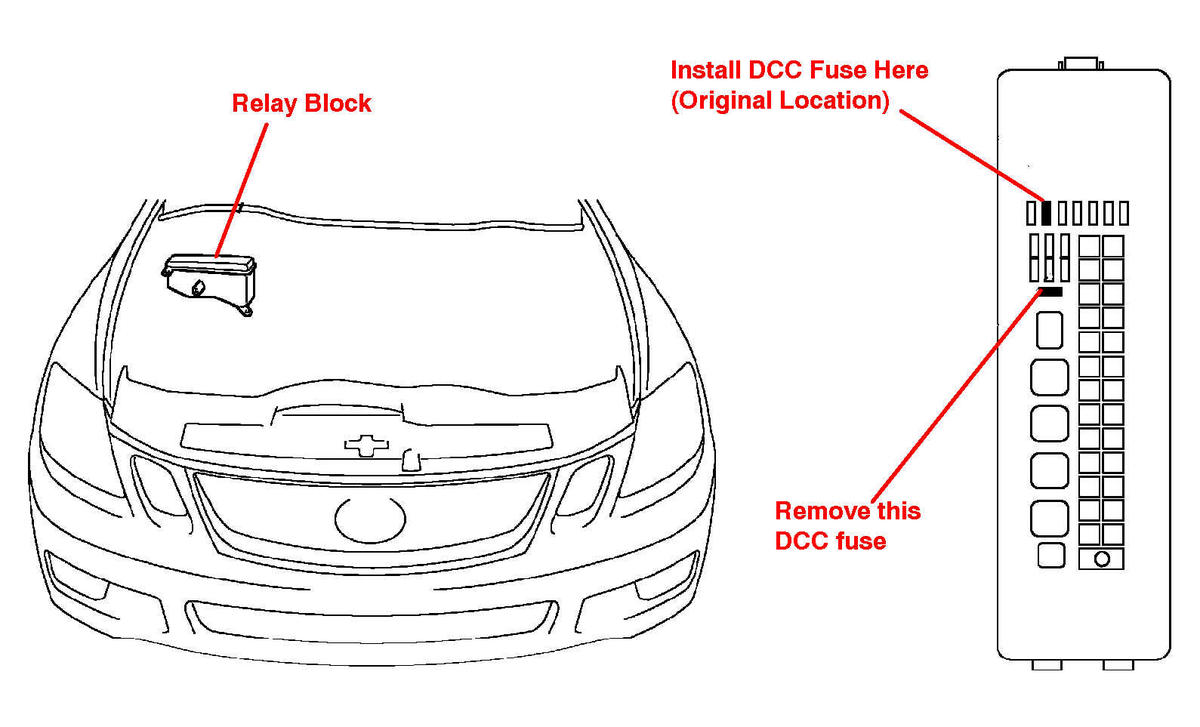

    Fig 3: Identifying DCC Fuse Locations
    G04577380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
  5. Replace the engine room side cover and cool air intake duct seal. Installation is in the reverse order of removal.
    1. When inserting the plastic nut, push it in.
    2. When inserting the clips, refer to the following illustration.

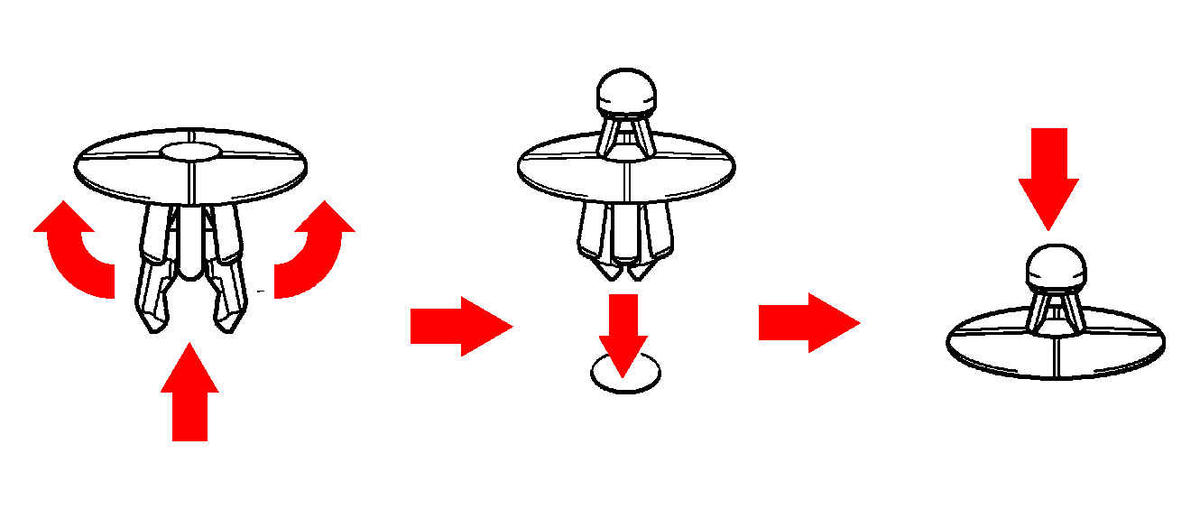

      Fig 4: Identifying Plastic Clips
      G04577381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
