Exhaust Pipe: Components

WARNING: This page is about a different car, the 2007 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

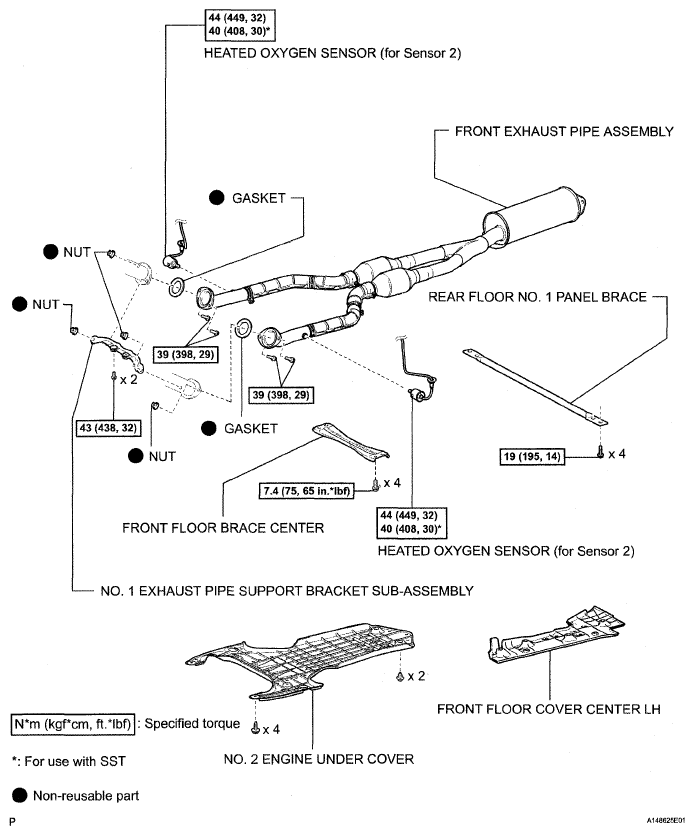

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 2)
G05287405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

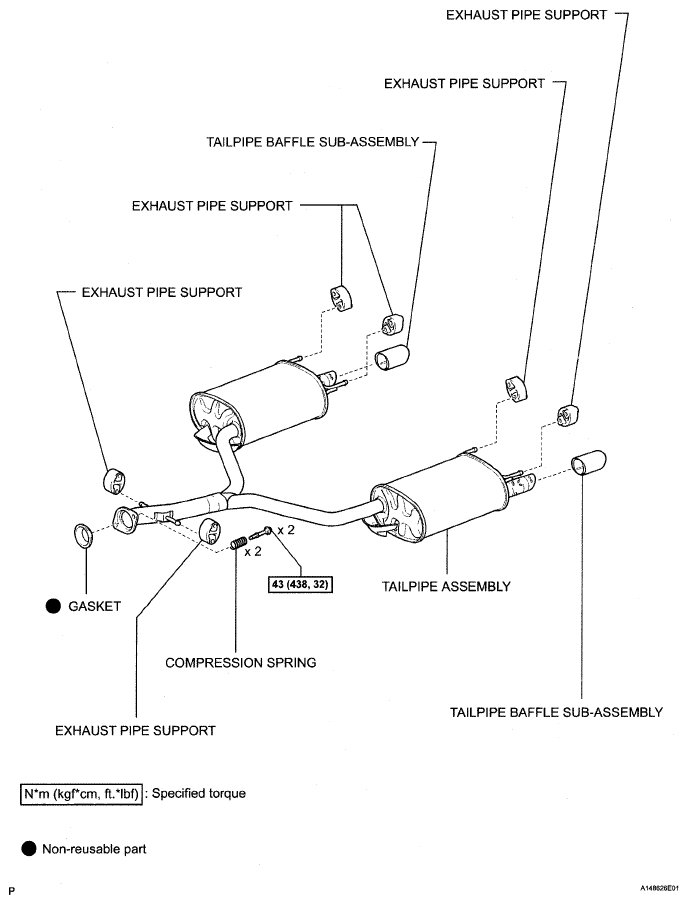

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 2)
G05287406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
