Transfer Case Front Oil Seal: Components

WARNING: This page is about a different car, the 2007 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

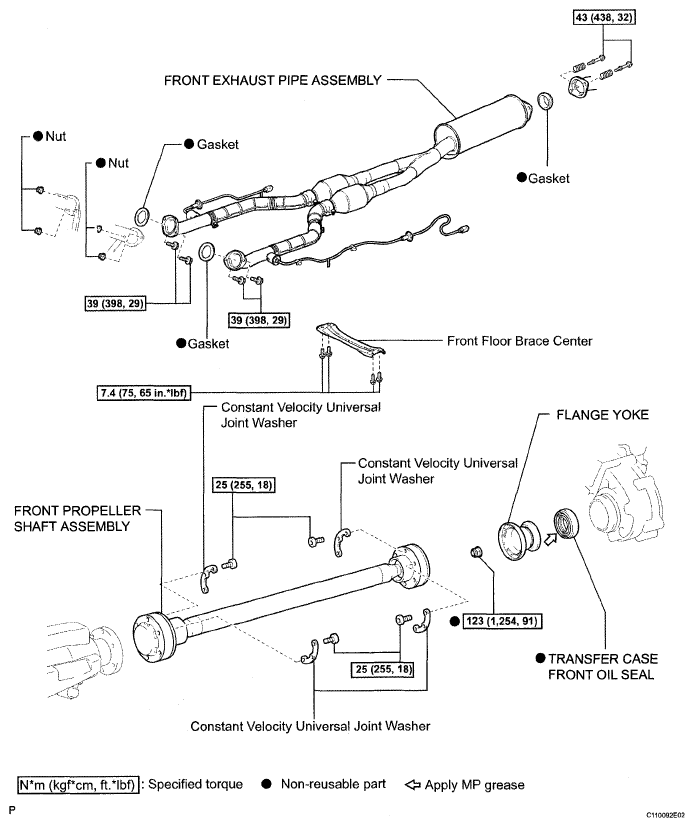

Fig 1: Transfer Case Front Oil Seal Replacement Components With Torque Specifications
G05295842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
