System Diagram

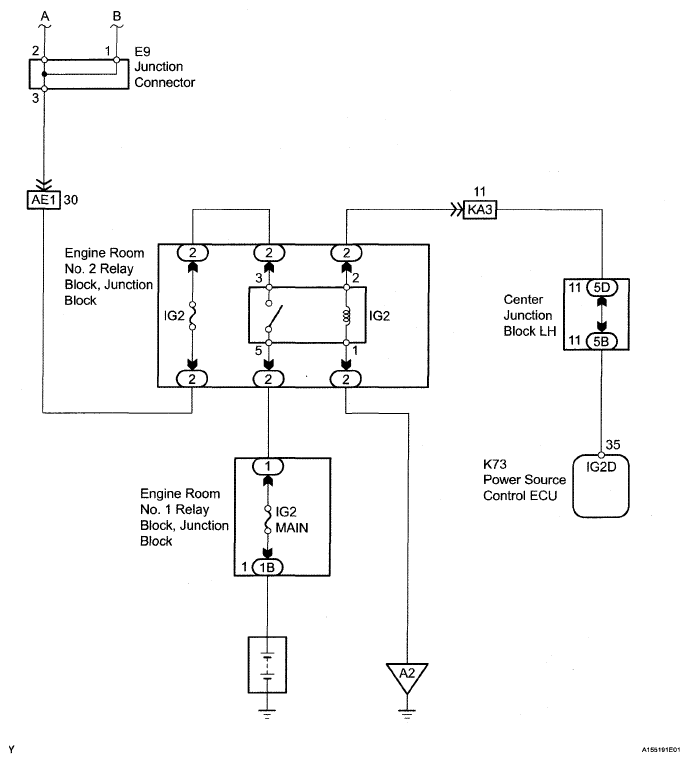

Fig 1: Ignition System Components Diagram (1 Of 2)
G05287697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

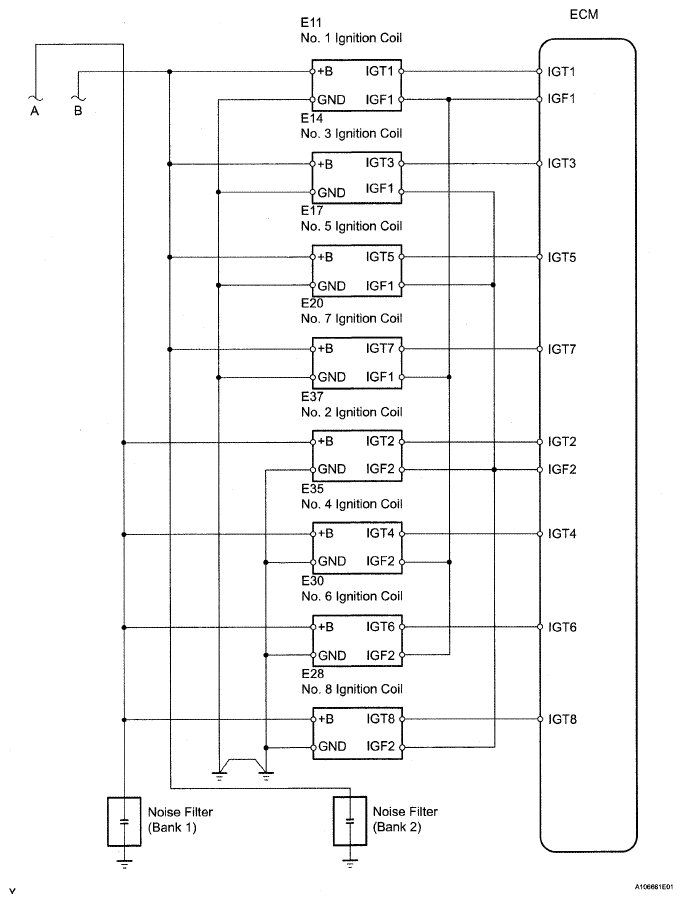

Fig 2: Ignition System Components Diagram (2 Of 2)
G05287698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
