Fuel Pump: Components

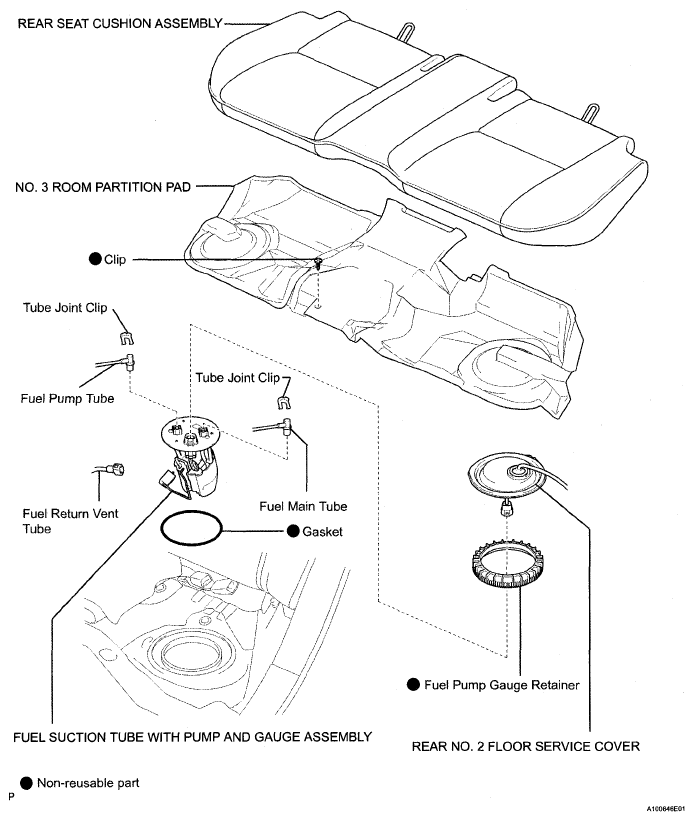

Fig 1: Identifying Fuel Pump And Components (1 Of 2)
G05287160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

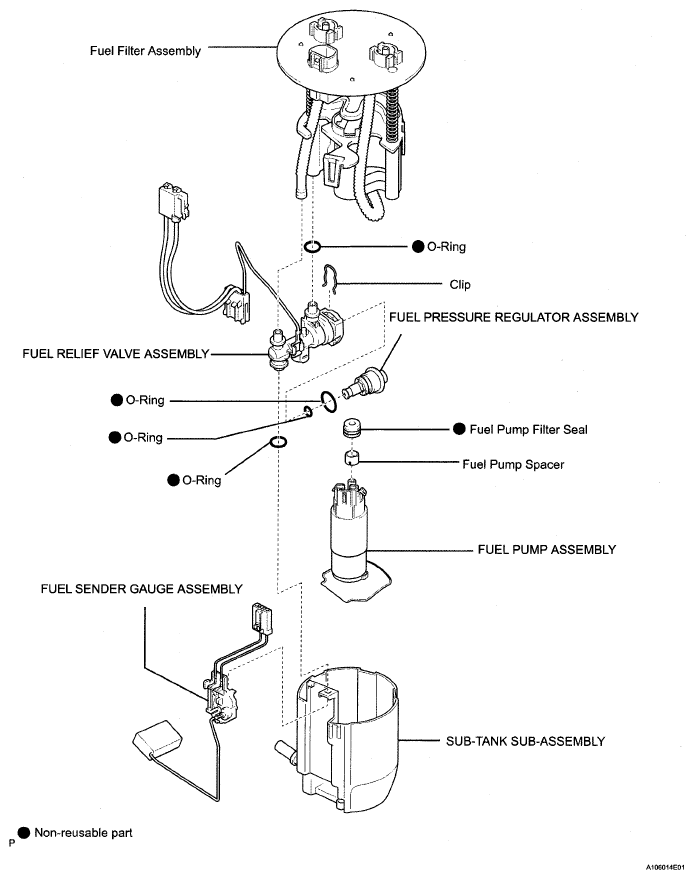

Fig 2: Identifying Fuel Pump And Components (2 Of 2)
G05287161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
