DTC P0121 Throttle l Pedal Position Sensor / Switch "A" Circuit Range / Performance Problem: Wiring Diagram

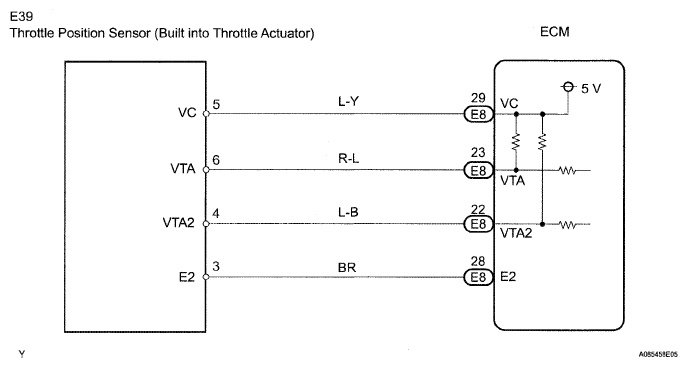

Fig 1: Throttle Position Sensor - Wiring Diagram
G05285501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
