Parts Location

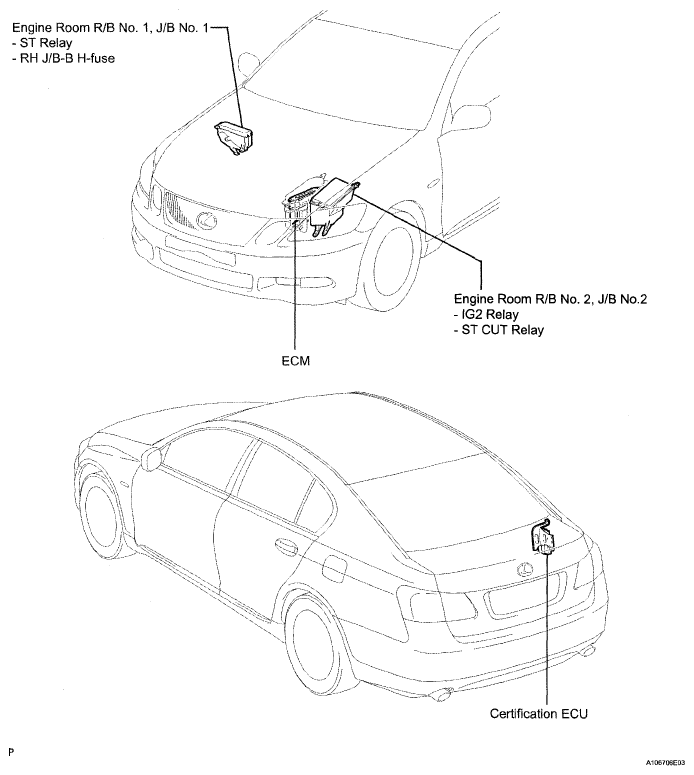

Fig 1: Identifying Smart Access System With Push Button Start Parts Location (1 Of 3)
G05287843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

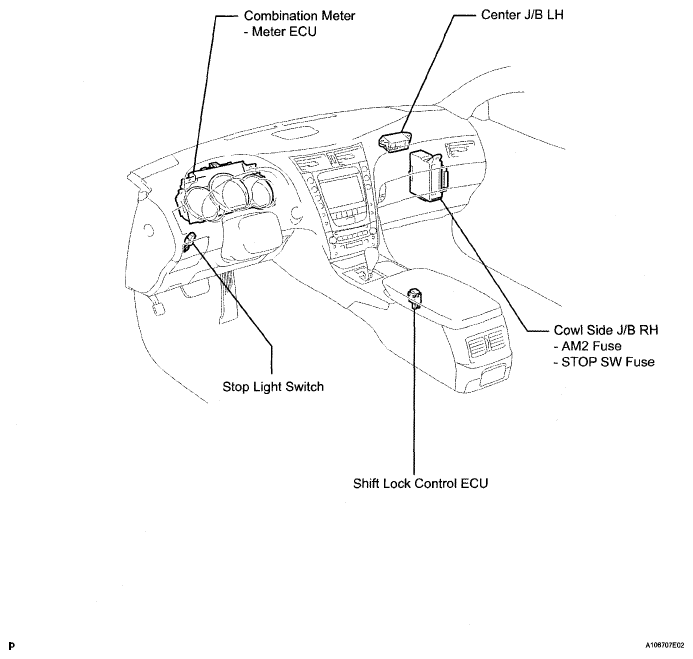

Fig 2: Identifying Smart Access System With Push Button Start Parts Location (2 Of 3)
G05287844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

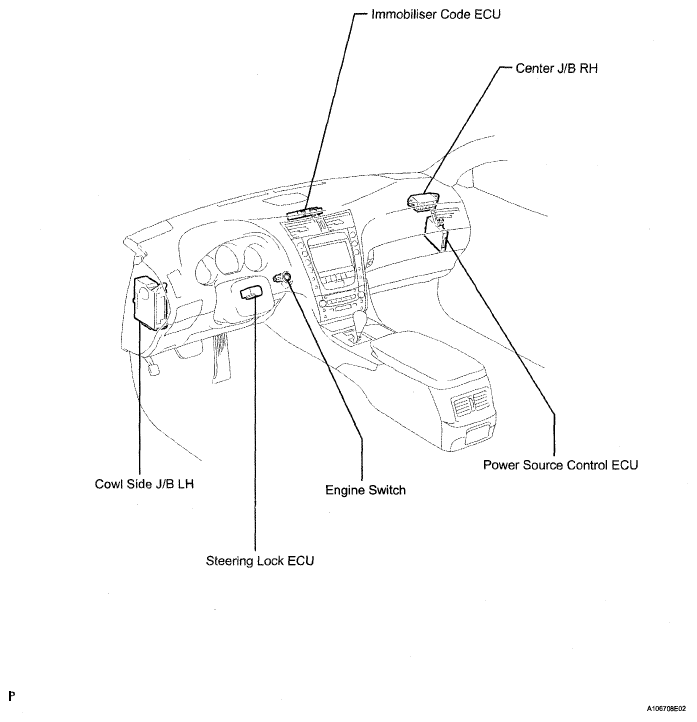

Fig 3: Identifying Smart Access System With Push Button Start Parts Location (3 Of 3)
G05287845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
