System Diagram

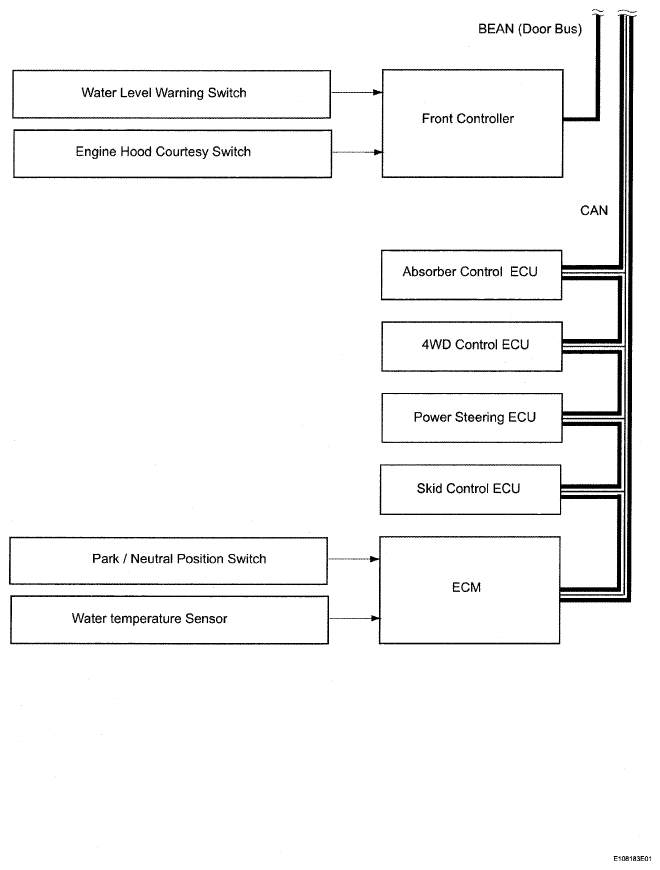

CAN:
ECU REFERENCE CHART
| ECU | Communication signal to combination meter |
|---|---|
| Skid control ECU |
|
| ECM |
|
| Power steering ECU |
|
| Absorber control ECU |
|

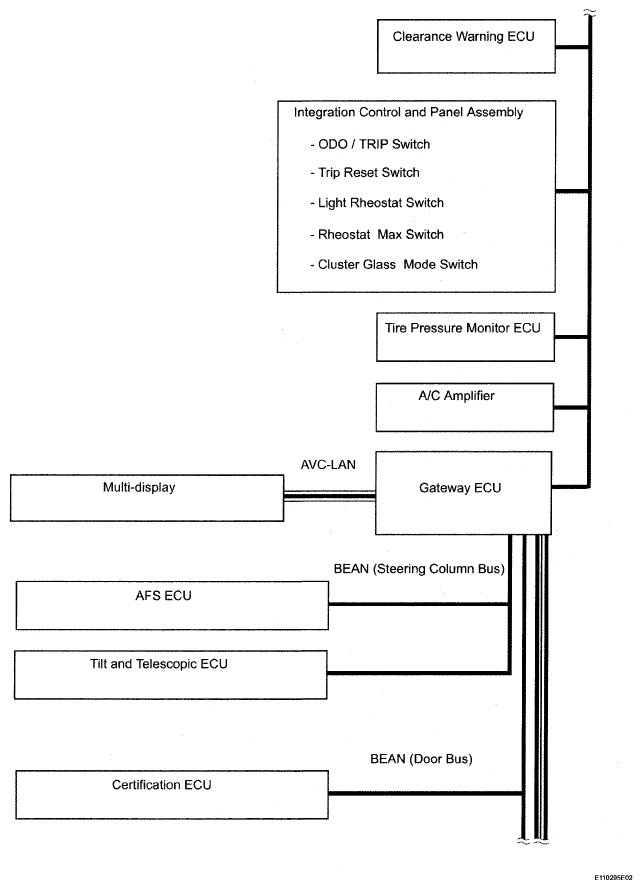

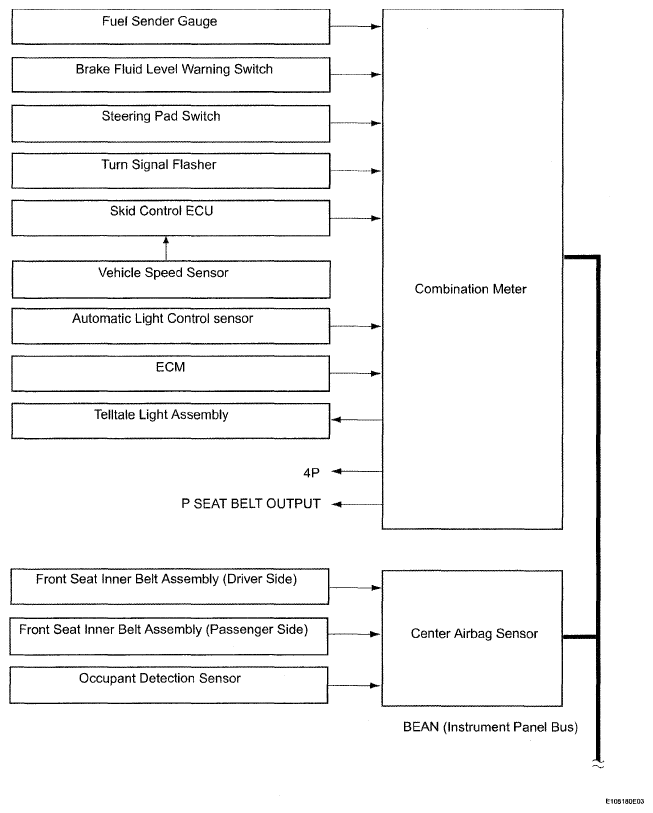

BEAN (Instrument panel):
ECU REFERENCE CHART
| ECU | Communication signal to combination meter |
|---|---|
| Combination meter |
|
| Center airbag sensor |
|
| Clearance warning ECU |
|
| Tire pressure monitor ECU |
|
| Integration control and panel assembly |
|

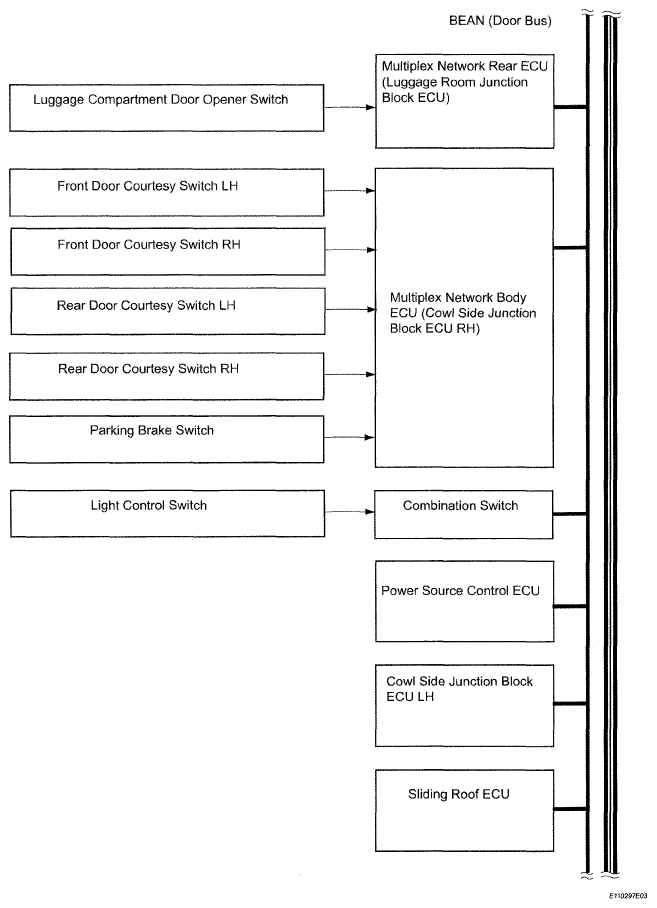

BEAN (Door):
ECU REFERENCE CHART
| ECU | Communication signal to combination meter |
|---|---|
| Multiplex network body ECU (Cowl side junction block ECU RH) |
|
| Multiplex network rear ECU Luggage room junction block ECU |
|
| Front controller |
|
| Sliding roof control ECU |
|
BEAN (Steering column):
ECU REFERENCE CHART
| ECU | Communication signal to combination meter |
|---|---|
| AFS ECU |
|
