System Description
HINT:
The light sensitive Optitron meter's surface glass automatically changes its permeation level according to the environment to maintain optimum viewing comfort for the driver. In this manual, it is referred to as the combination meter.
- METER GAUGE AND WARNING/INDICATOR
GAUGE:
ITEM DETAIL CHARTItem Detail Speedometer Based on a signal received from wheel speed sensor, skid control
ECU calculates vehicle speed and transmits data to meter (Direct line)Tachometer ECM transmits engine speed to meter display (Direct line) Water Temperature Gauge Displays water temperature based on signals from ECM (BEAN) Fuel Gauge Fuel sender gauge sends gauge data to meter display (Direct line) WARNING / INDICATOR:
ITEM DETAIL CHARTItem Detail TURN SIGNAL Receives turn signal from flasher relay (Direct line) BEAM Receives beam signal from the multiplex network body ECU (Cowl side junction block ECU RH) (BEAN) FOG LIGHT Receives fog light signal from the multiplex network body ECU (Cowl side junction block ECU RH) (BEAN) CHARGE Receives malfunction charge signal from ECM (CAN) CHECK E/G Receives malfunction check signal from ECM (Direct line) DOOR Open door indicator illuminates when receiving a signal from multiplex network Body ECU (Cowl side junction block ECU RH) (BEAN) D BELT Receives driver seat belt signal (unfastened) from center airbag sensor (BEAN) BRAKE Receives parking brake switch/brake fluid level warning signal from skid control ECU (BEAN) CRUISE Receives malfunction signal from ECM (CAN) AIR BAG Receives malfunction signal from center airbag sensor (BEAN) A/T P Receives P signal from ECM (CAN) A/T R Receives R signal from ECM (CAN) A/T N Receives N signal from ECM (CAN) A/T D Receives D signal from ECM (CAN) A/T S Receives S signal from ECM (CAN) SLIP Receives malfunction signal from skid control ECU (BEAN) ABS Receives malfunction signal from skid control ECU (BEAN) Electronically Controlled Brake System/VSC Receives malfunction signal from skid control ECU (BEAN) VSC OFF Receives malfunction signal from skid control ECU (BEAN) AVS SPORT Receives sports mode signal from TEMS ECU (CAN) ECT POWER Receives power mode signal from ECM (CAN) ECT SNOW Receives snow mode signal from ECM (CAN) AFS OFF Receives AFS OFF signal from AFS ECU (BEAN) TAIL or HEAD Receives taillight or headlight malfunction signal from multiplex network body ECU (Cowl side junction block ECU RH) (BEAN) PARK ASIST Receives malfunction signal from the Clearance Warning ECU (BEAN) P/S Receives malfunction signal from Power Steering ECU (CAN) TIRE PRESSURE Receives malfunction signal from tire pressure monitor ECU (BEAN) PSC Receives malfunction signal from center airbag sensor (BEAN) - MULTI-INFORMATION DISPLAY

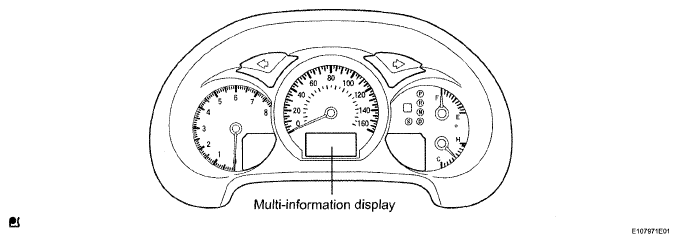

When the DISP switch is pressed, the multi-information display is changed between the following modes: standard mode, cruise information display mode, radar cruise mode, warning mode.

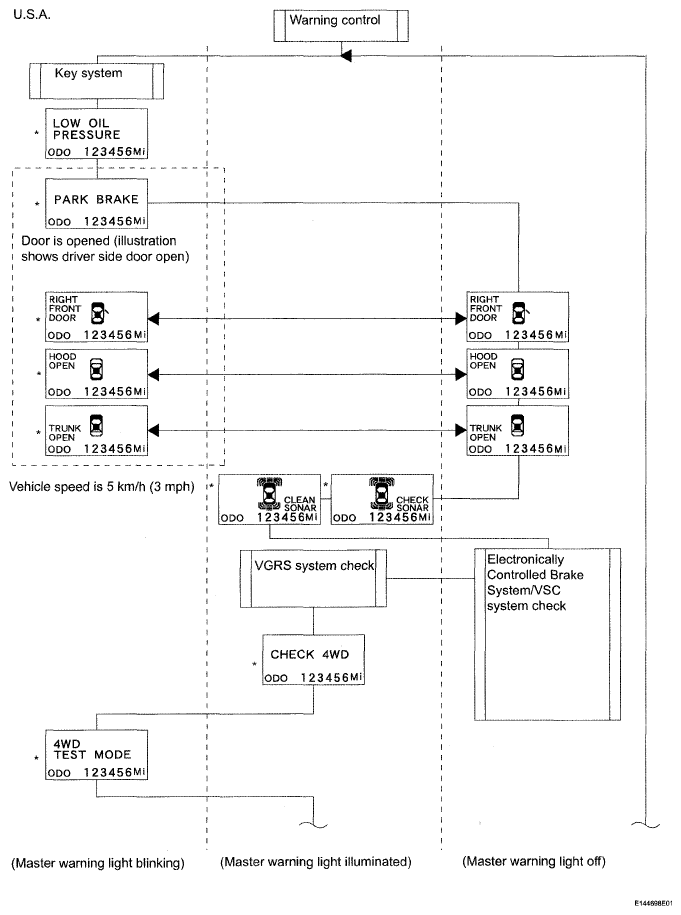

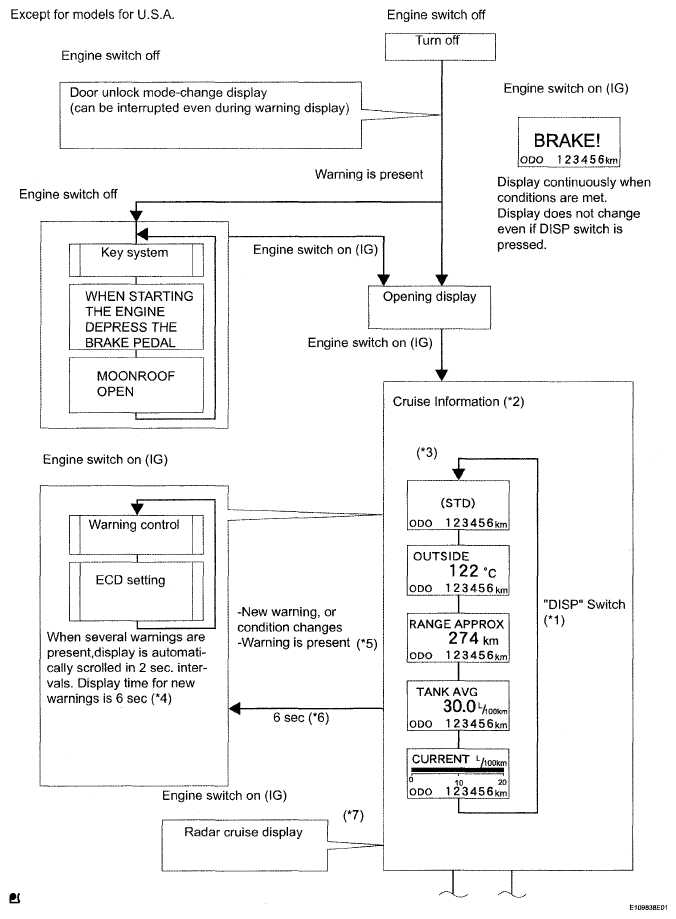

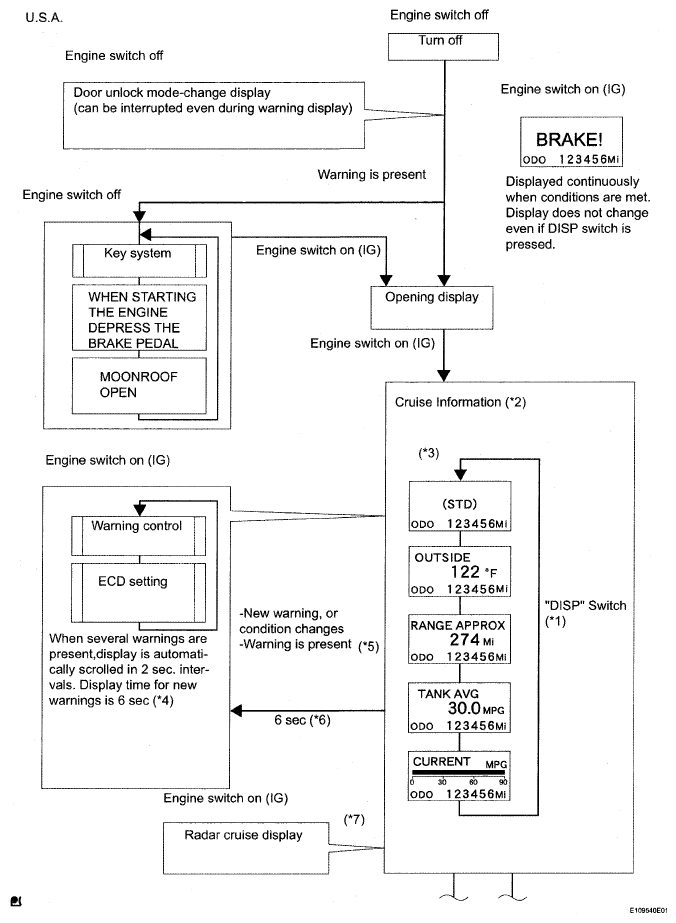

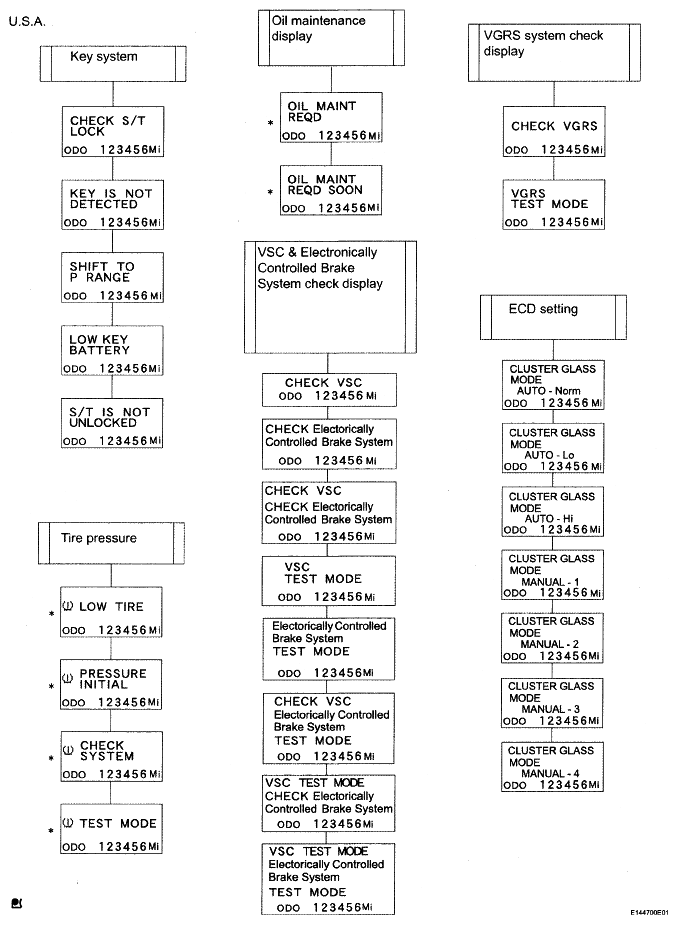

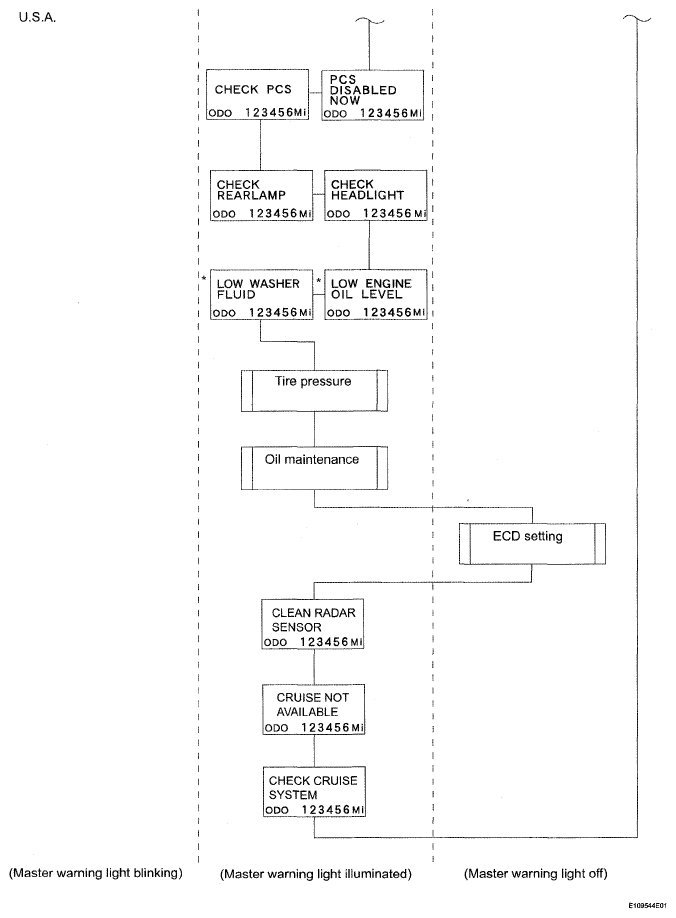

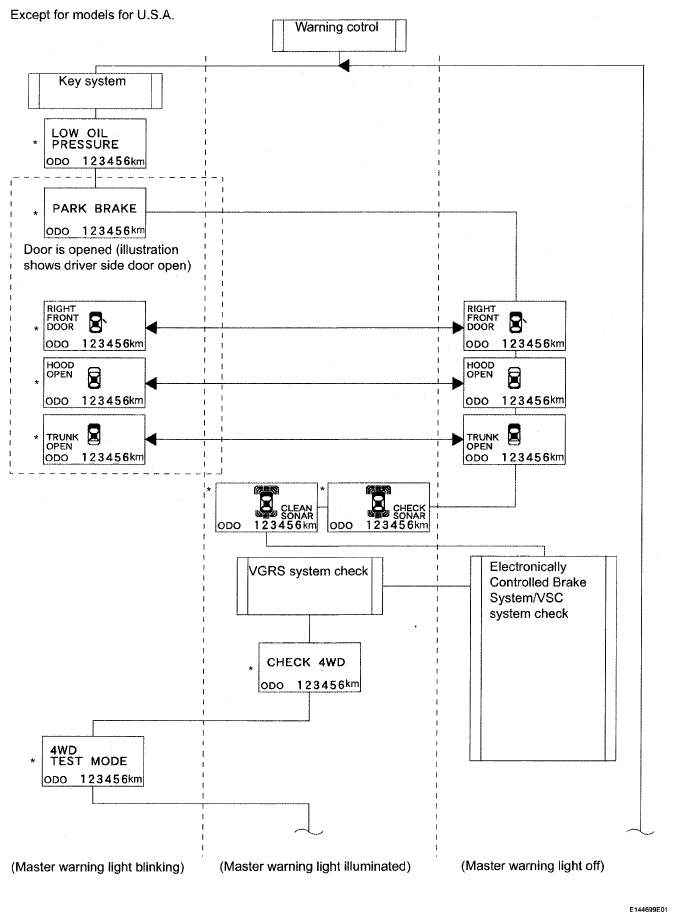

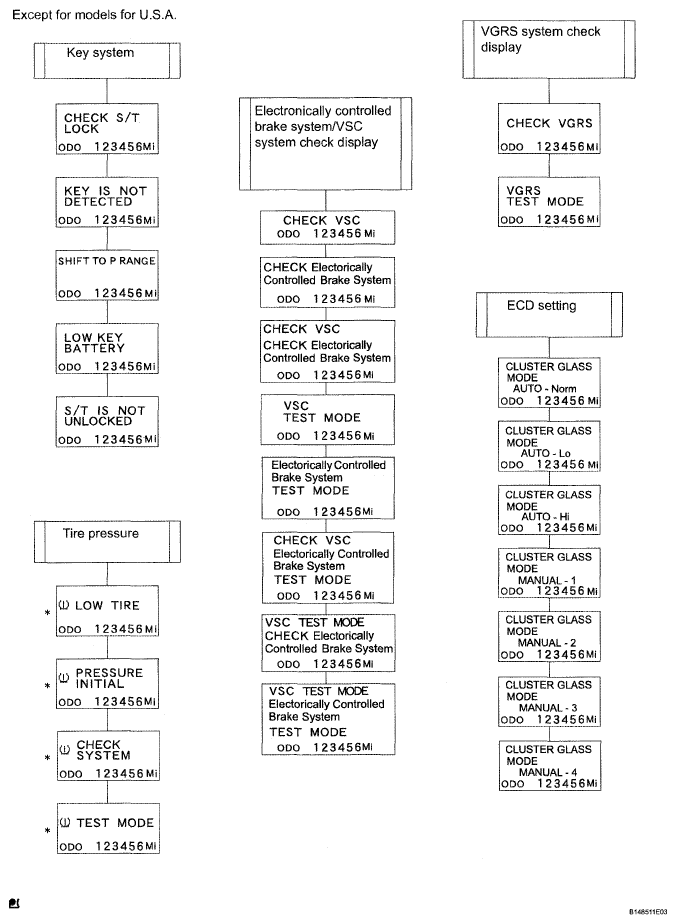

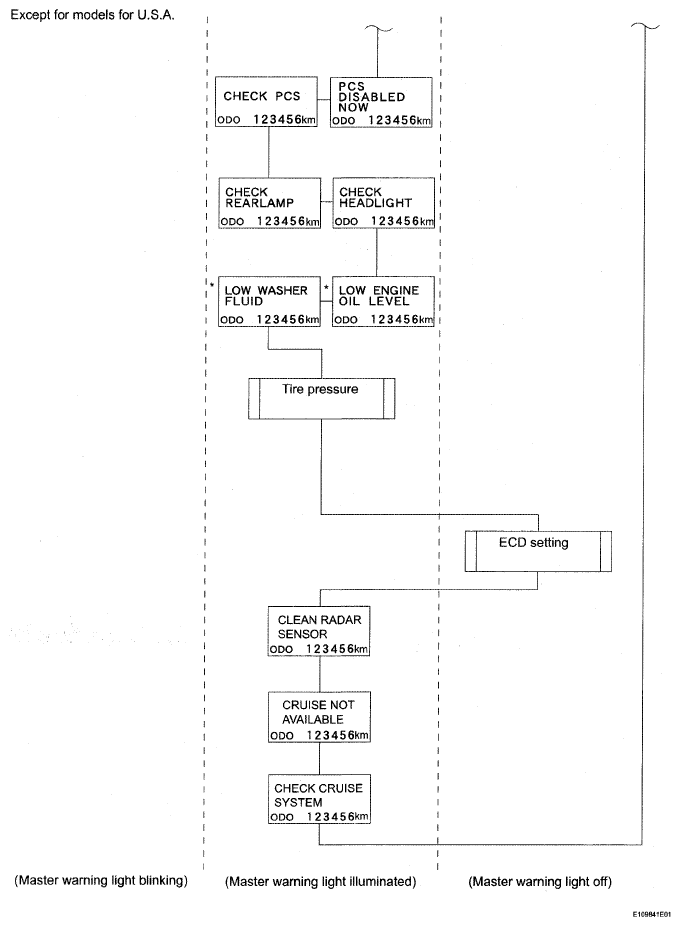

- MULTI-INFORMATION DISPLAY FLOW CHART
*1: When the steering pad DISP switch is pressed, the display changes in the order shown (inserted interruption warning displays and radar cruise displays are also included) *2: When engine switch is turned on (IG), the display will show the last display shown when the engine switch was turned off. If the engine switch was turned off while the display was showing a warning display or radar cruise display, turning the engine switch on (IG) will show the next display in the display order.
*3: When there is a warning display or radar cruise display, STD mode will not be displayed.
*4: When there is a door warning display, if a door other than the currently open door is opened, a new door warning will be displayed.
*5: When there is a new warning or the condition of the vehicle has changed, it interrupts the current display immediately. The warning will be inserted before the current display. When the warning is no longer necessary, it is deleted and the next display in the display order is shown. *6: When the display is changed from the warning display to the cruise information display, the display will automatically return to the warning display 6 seconds after the last press of the DISP switch.
*7: When radar cruise related multiplex data is received, it interrupts the current display immediately. Radar cruise vehicle-to-vehicle distance or vehicle speed fluctuations will not interrupt the display. The radar cruise warning will be inserted before the current display.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
- Only automatic scrolling is available for the warning displays.
- *: When either of these warnings occurs the first time, the buzzer will sound once.
- When a warning occurs for the first time, it will be displayed as a new warning.
- When several warnings occur at the same time, the displays will appear in 2 second intervals. When a new warning occurs, it will be displayed for 6 seconds.
- "MOON ROOF OPEN", "WHEN STARTING THE ENGINE, DEPRESS THE BRAKE PEDAL" is not displayed on the combination meter when the engine switch is on (IG).
- When the door warning and sonar warning conditions are met at the same time, an automatic door open animation is also displayed.
