Home >> Lexus >> 2007 >> GS 430 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control >> SKID CONTROL ECU (for 3UZ-FE) >> Components

SKID CONTROL ECU (for 3UZ-FE): Components

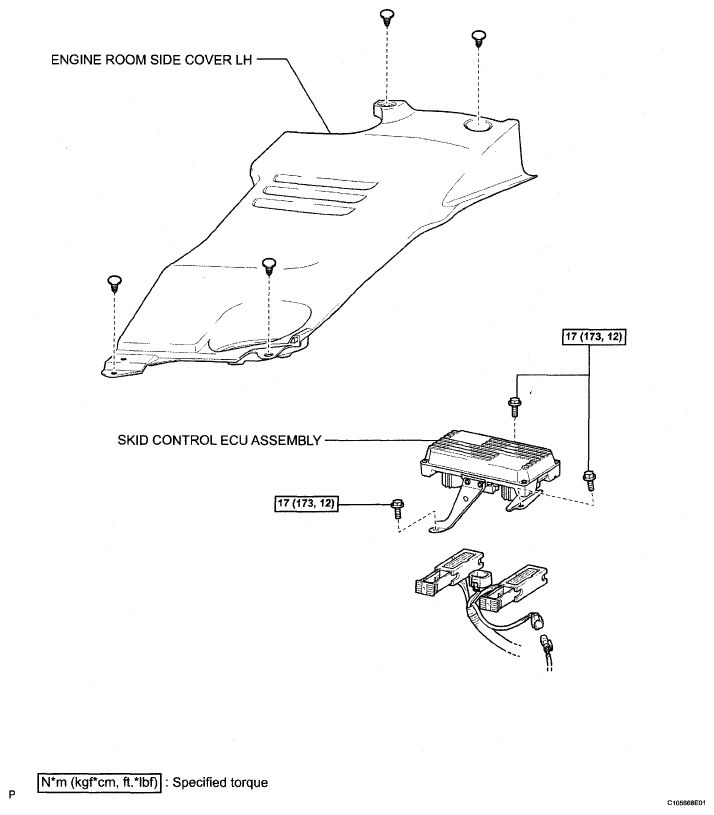

Fig 1: Skid Control ECU (for 3UZ-FE) Replacement Components With Torque Specifications
G05297184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
