FRONT SPEED SENSOR (for 4WD): Components

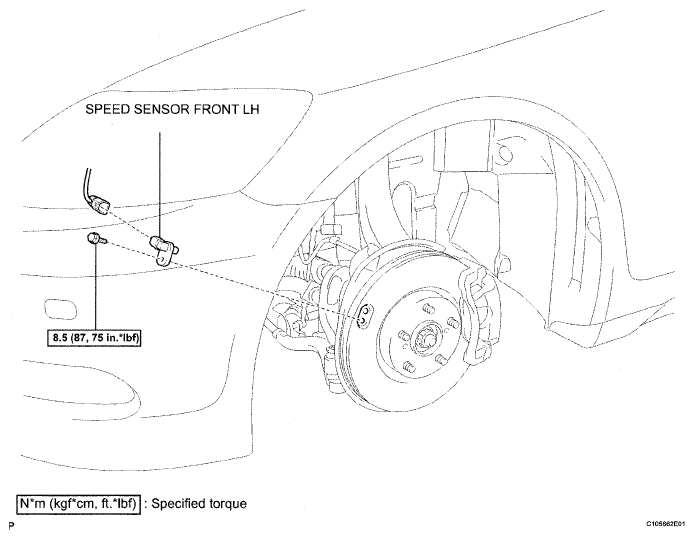

Fig 1: Brake Control Front Speed Sensor (For 4WD) Replacement Components With Torque Specifications

G05297167

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
