BRAKE ACTUATOR (for 3UZ-FE): Components

Fig 1: Brake Control Brake Actuator Replacement Components With Torque Specifications - 3UZ-FR (1 Of 2)
G05297149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

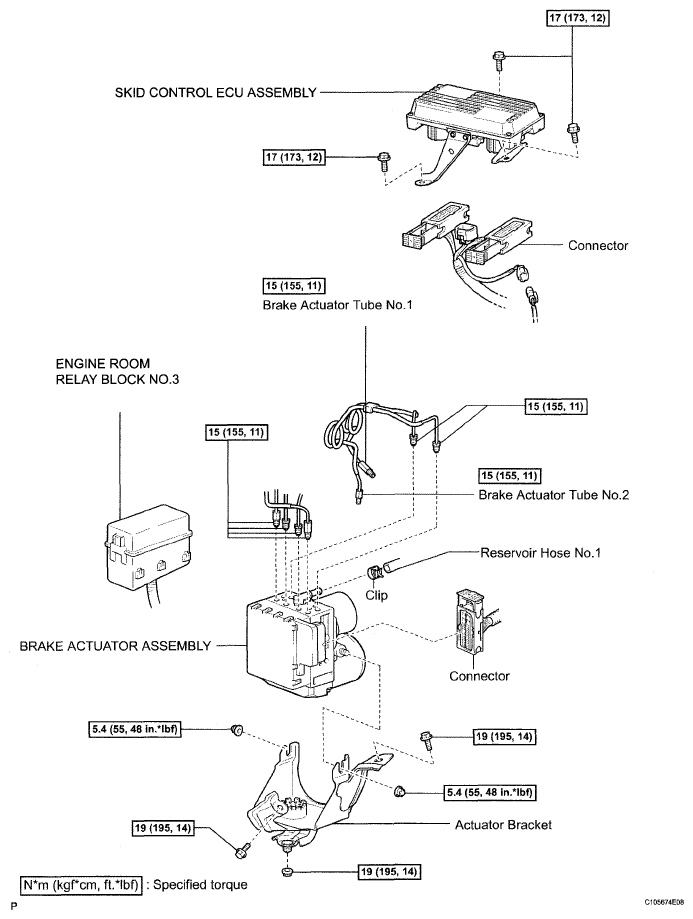

Fig 2: Brake Control Brake Actuator Replacement Components With Torque Specifications - 3UZ-FR (2 Of 2)
G05297150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
