BRAKE ACTUATOR (for 2GR-FSE): Components

Fig 1: Brake Control Brake Actuator Replacement Components With Torque Specifications - 2GR-FSE (1 Of 2)
G05297139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

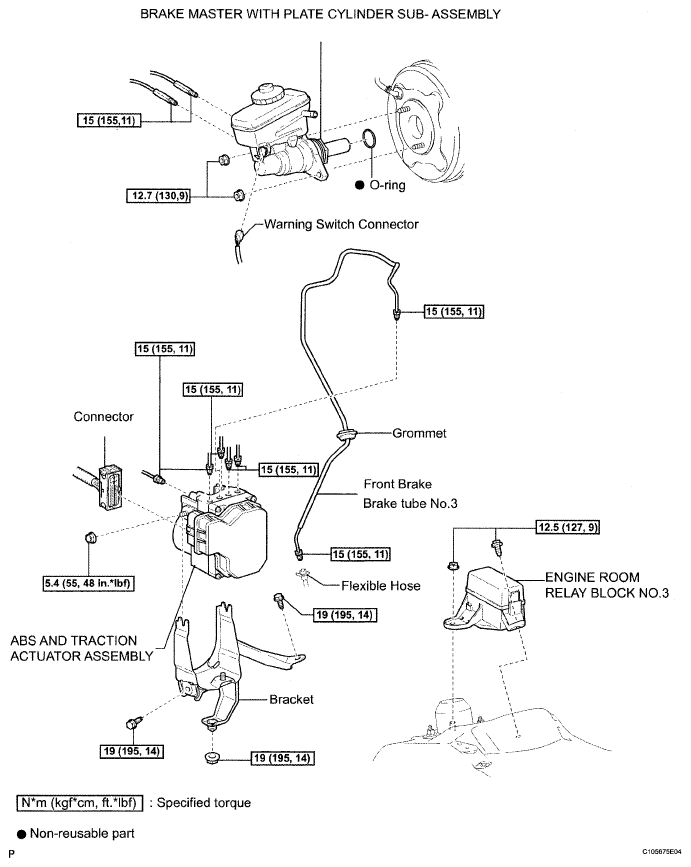

Fig 2: Brake Control Brake Actuator Replacement Components With Torque Specifications - 2GR-FSE (2 Of 2)
G05297140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
