Rear Seat Assembly: Reassembly

HINT:

A bolt without a torque specification is shown in the standard bolt chart, (see SPECIFIED TORQUE FOR STANDARD BOLTS )

1. INSTALL BENCH TYPE REAR SEATBACK COVER
   NOTE:

   • Be careful not to damage the cover.
   • When installing the hog rings, avoid wrinkling the cover.
   1. Using hog ring pliers, install the seatback cover to the seatback frame (with pad) with new hog rings.

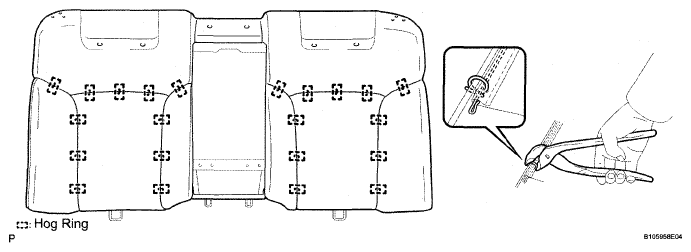

      Fig 1: Installing Seatback Cover To Seatback Frame With Hog Rings

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

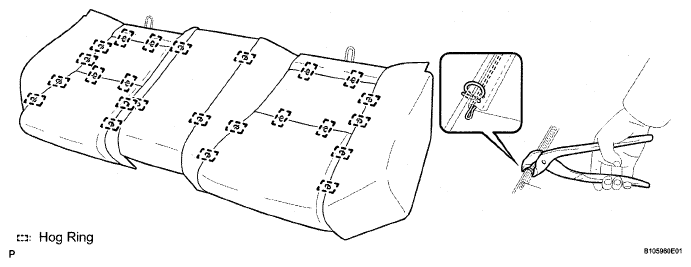

      Fig 2: Installing Seatback Cover To Seatback Frame With Hog Rings

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the rear seat shoulder belt guides LH and RH with the 6 screws.
   3. Install the rear seat shoulder belt guide center with the 2 screws.
   4. Install the 6 rear seat headrest supports.
2. INSTALL REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY
   1. Install the cup holder to the pad with the 2 screws.
   2. Install the cover sub-assembly to the pad.
   3. Install the pad sub-assembly to the box assembly.
3. INSTALL REAR SEAT CENTER ARMREST HINGE
   1. Install the hinge with the 2 bolts.
4. INSTALL REAR SEAT ARMREST ASSEMBLY CENTER
   1. Attach the 2 claws and install the armrest assembly with the 2 nuts.
5. INSTALL BENCH TYPE REAR SEAT CUSHION COVER
   NOTE:

   • Be careful not to damage the cover.
   • When installing the hog rings, avoid wrinkling the cover.
   1. Using hog ring pliers, install the seat cushion cover to the seat cushion frame (with pad) with new hog rings.

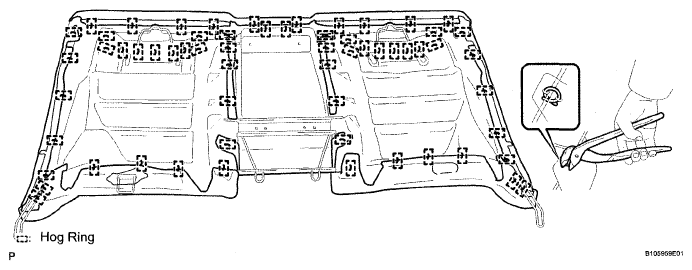

   Fig 3: Installing Seat Cushion Cover To Seat Cushion Frame (With Pad) With New Hog Rings (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

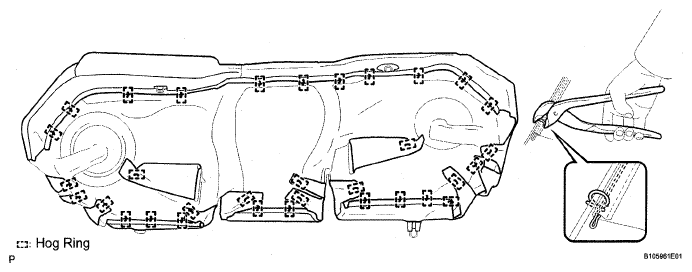

   Fig 4: Installing Seat Cushion Cover To Seat Cushion Frame (With Pad) With New Hog Rings (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
