Rear Seat Assembly: Disassembly

  1. REMOVE BENCH TYPE REAR SEAT CUSHION COVER
    1. Remove the hog rings.

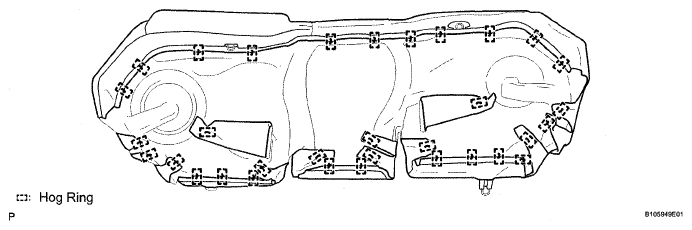

      Fig 1: Removing Hog Rings
      G05300570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hog rings and seat cushion cover from the seat cushion frame (with pad).

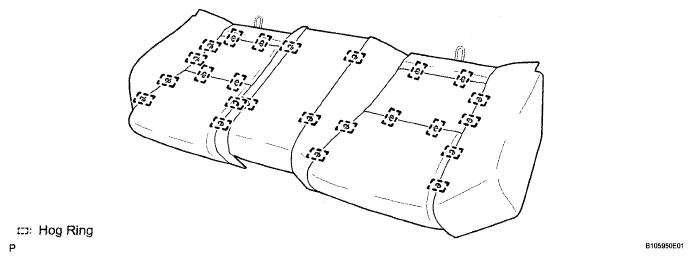

    Fig 2: Removing Hog Rings And Seat Cushion Cover From Seat Cushion Frame
    G05300571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY
    1. Remove the 2 nuts.
    2. Pull the armrest in the direction indicated by the arrow in the illustration to detach the 2 claws. Then, remove the armrest assembly.
    Fig 3: Removing Rear Seat Center Armrest Assembly
    G05300572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT CENTER ARMREST HINGE
    1. Remove the 2 bolts and hinge.
      Fig 4: Removing Rear Seat Center Armrest Hinge
      G05300573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY
    1. Separate the pad sub-assembly and box assembly.
    2. Remove the cover sub-assembly from the pad.
      Fig 5: Removing Cover Sub-Assembly From Pad
      G05300574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 screws and cup holder.
      Fig 6: Removing Screws And Cup Holder
      G05300575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE BENCH TYPE REAR SEATBACK COVER
    1. Detach the 12 claws and remove the 6 rear seat headrest supports.

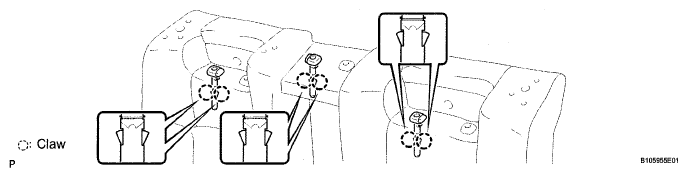

      Fig 7: Removing Rear Seat Headrest Supports
      G05300576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws and rear seat shoulder belt guides LH and RH.
      Fig 8: Removing Screws And Rear Seat Shoulder Belt Guides LH And RH
      G05300577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 screws and rear seat shoulder belt guide center.
    4. Remove the hog rings.
      Fig 9: Removing Screws And Rear Seat Shoulder Belt Guide Center
      G05300578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

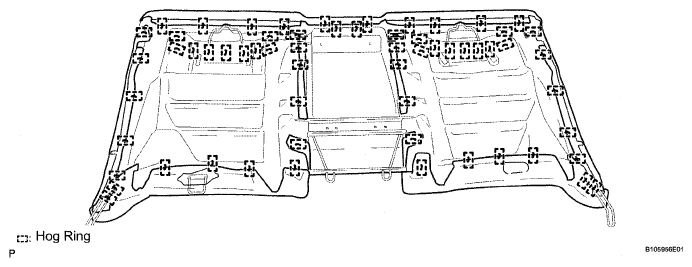

      Fig 10: Removing Hog Rings
      G05300579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the hog rings and seatback cover from the seatback frame (with pad).

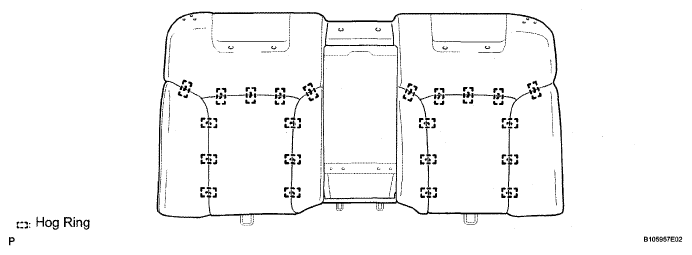

    Fig 11: Removing Hog Rings And Seatback Cover From Seatback Frame
    G05300580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
