Home >> Lexus >> 2007 >> GS 430 >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Front Power Seat Lumbar Switch >> Components

Front Power Seat Lumbar Switch: Components

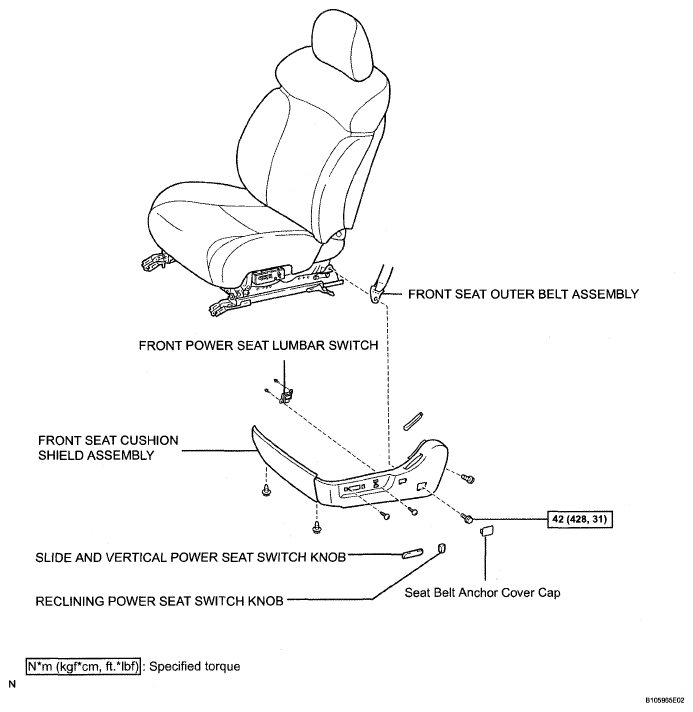

Fig 1: Front Power Seat Lumbar Switch Replacement Components With Torque Specifications

G05300619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
