Parts Location

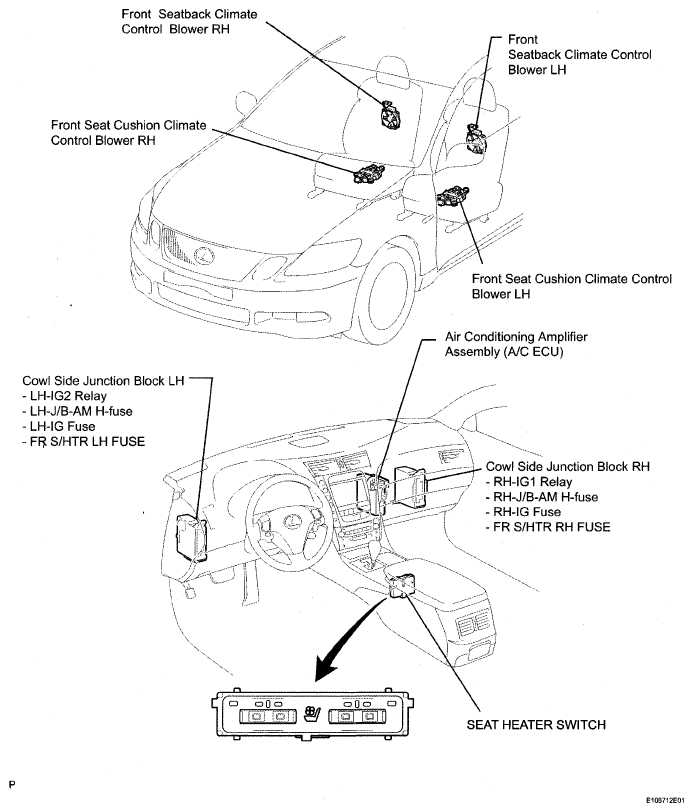

Fig 1: Identifying Climate Control Seat System Parts Location

G05300490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
