Room Oscillator does not Recognize Key: Wiring Diagram

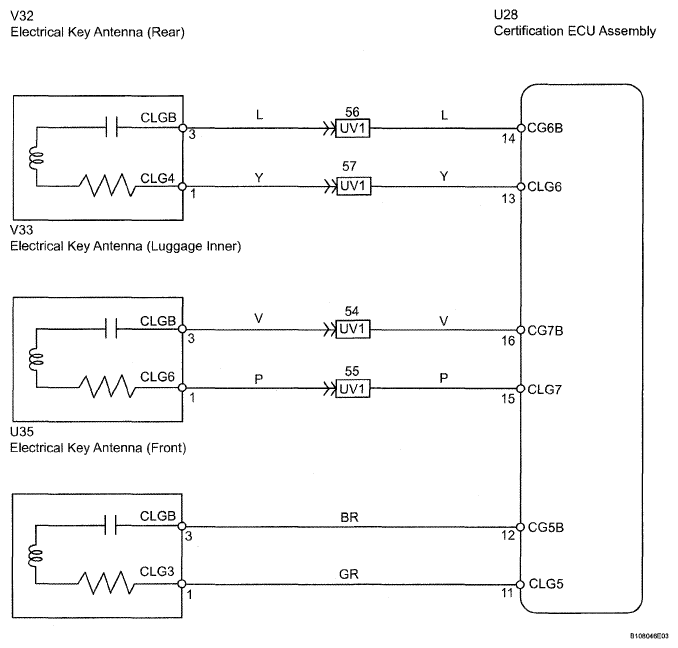

Fig 1: Electrical Key Antenna - Wiring Diagram

G05299272

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
