Key Luggage Compartment Lock-in Prevention Function does not Operate: Wiring Diagram

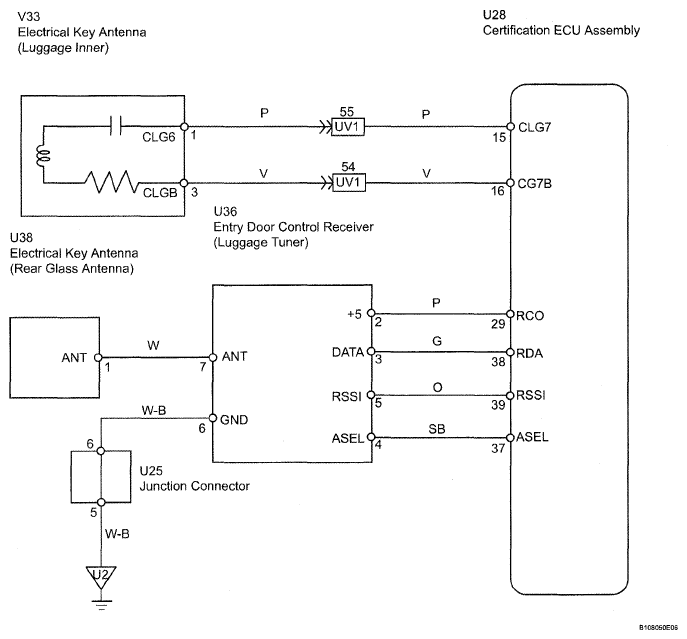

Fig 1: Electrical Key Antenna Luggage Compartment - Wiring Diagram

G05299277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
