Parts Location

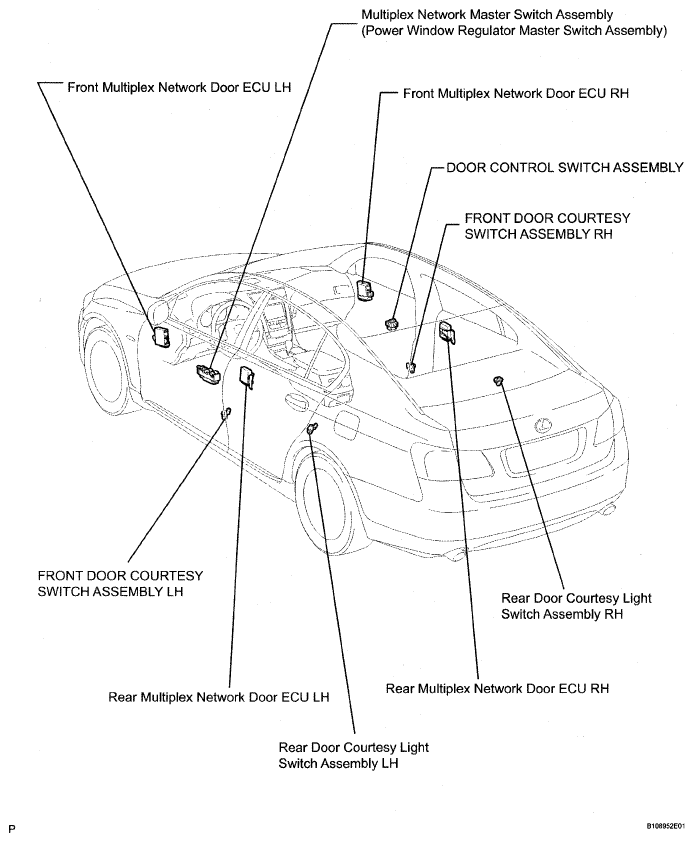

Fig 1: Identifying Power Door Lock Control System Parts Location (1 Of 4)
G05299145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

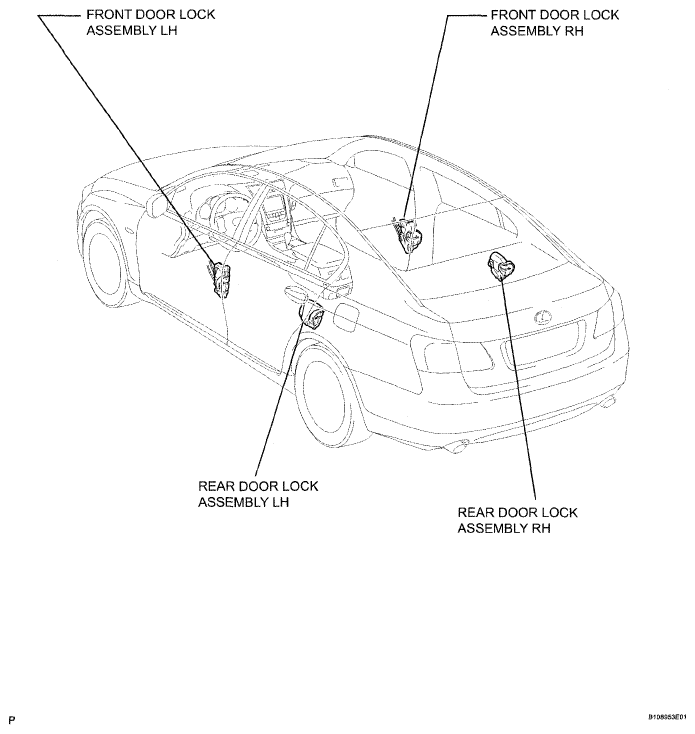

Fig 2: Identifying Power Door Lock Control System Parts Location (2 Of 4)
G05299146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

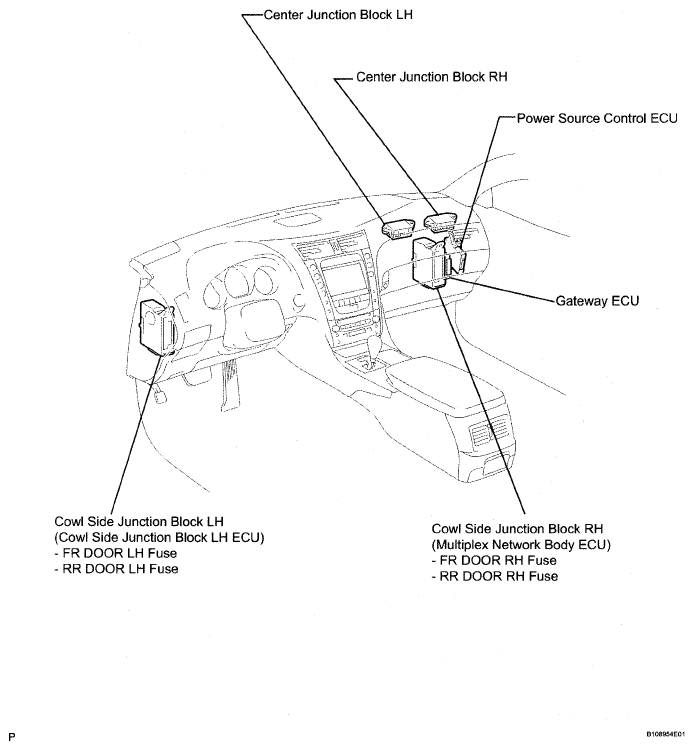

Fig 3: Identifying Power Door Lock Control System Parts Location (3 Of 4)
G05299147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

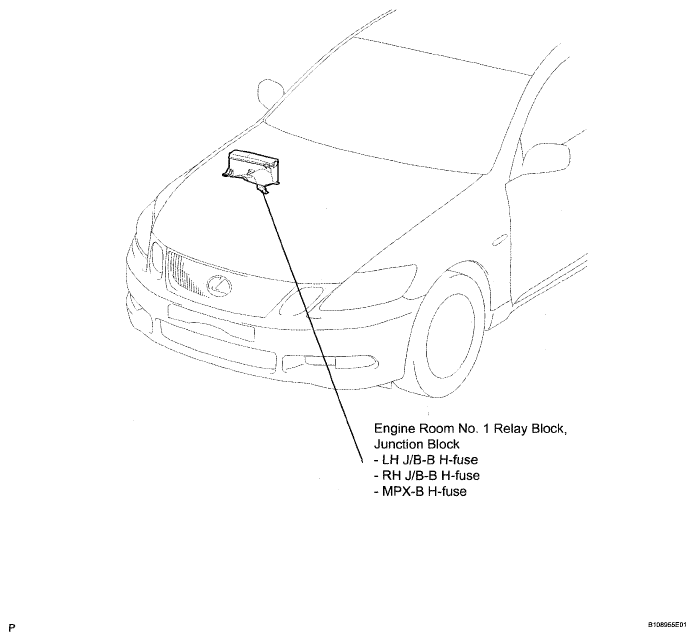

Fig 4: Identifying Power Door Lock Control System Parts Location (4 Of 4)
G05299148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
