Parts Location

Fig 1: Identifying Power Mirror Control System Parts Location (1 Of 3)
G05300266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

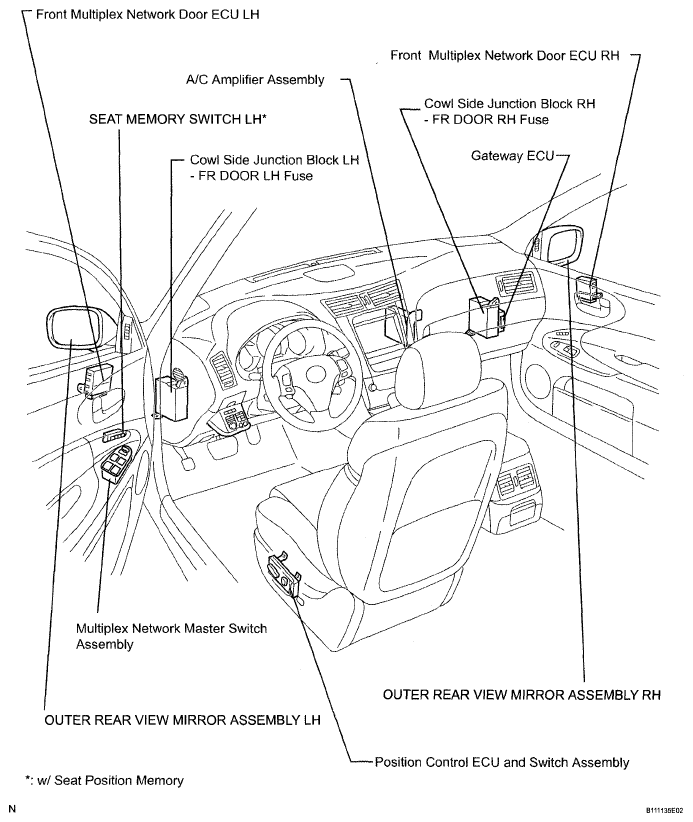

Fig 2: Identifying Power Mirror Control System Parts Location (2 Of 3)
G05300267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

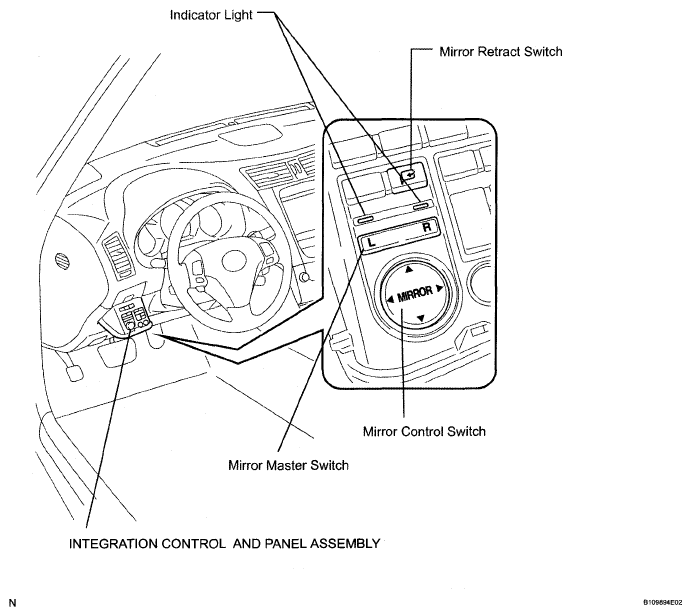

Fig 3: Identifying Power Mirror Control System Parts Location (3 Of 3)
G05300268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
