System Diagram

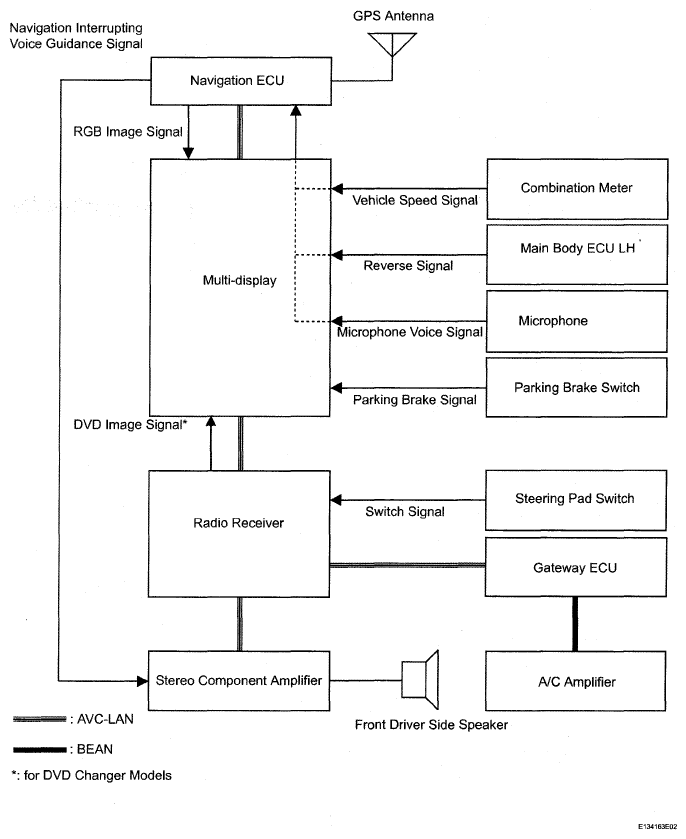

Fig 1: Navigation System Diagram

G05299687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
