Parts Location

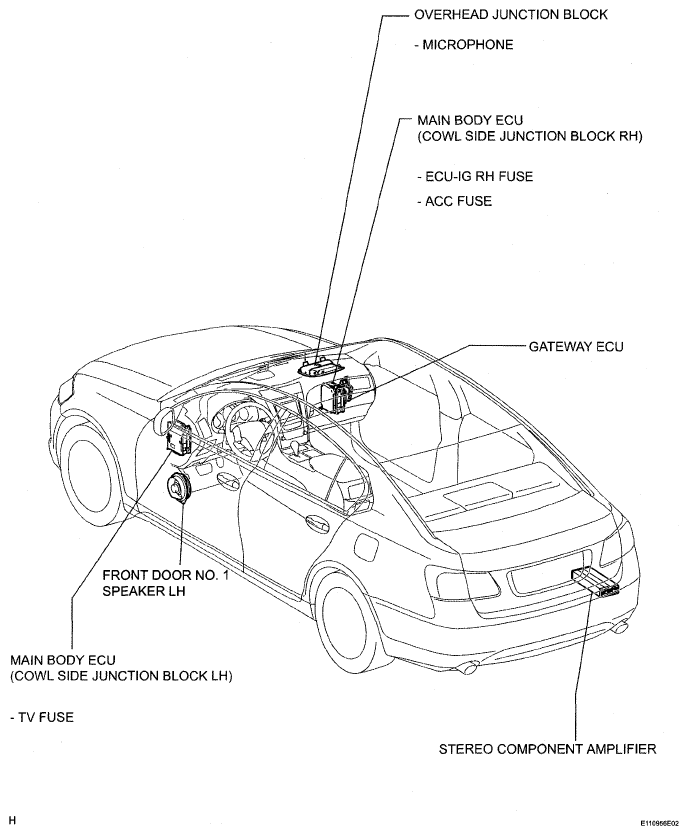

Fig 1: Identifying Navigation System Components (1 Of 2)
G05299685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

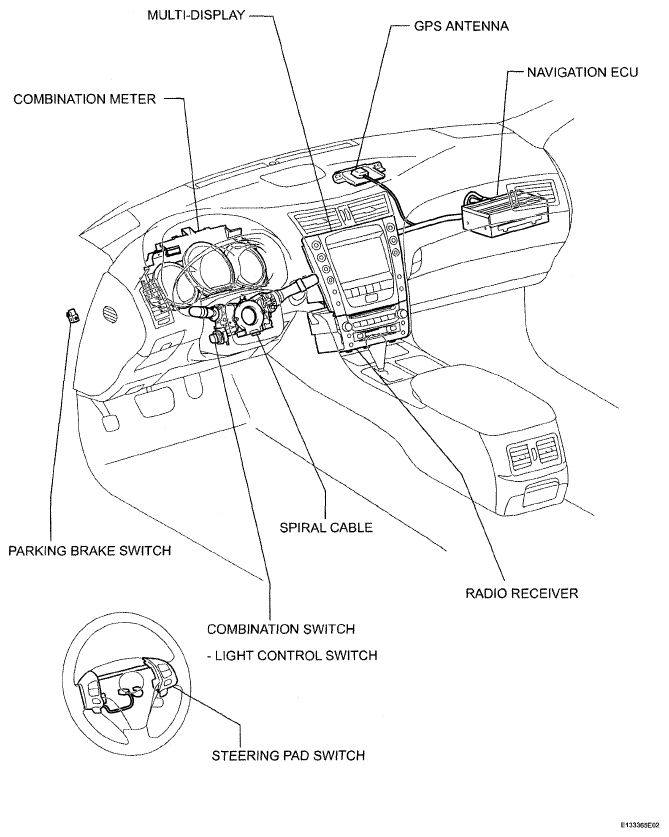

Fig 2: Identifying Navigation System Components (2 Of 2)
G05299686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
