Home >> Lexus >> 2007 >> GS 430 >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting >> Headlight Assembly >> Components

Headlight Assembly: Components

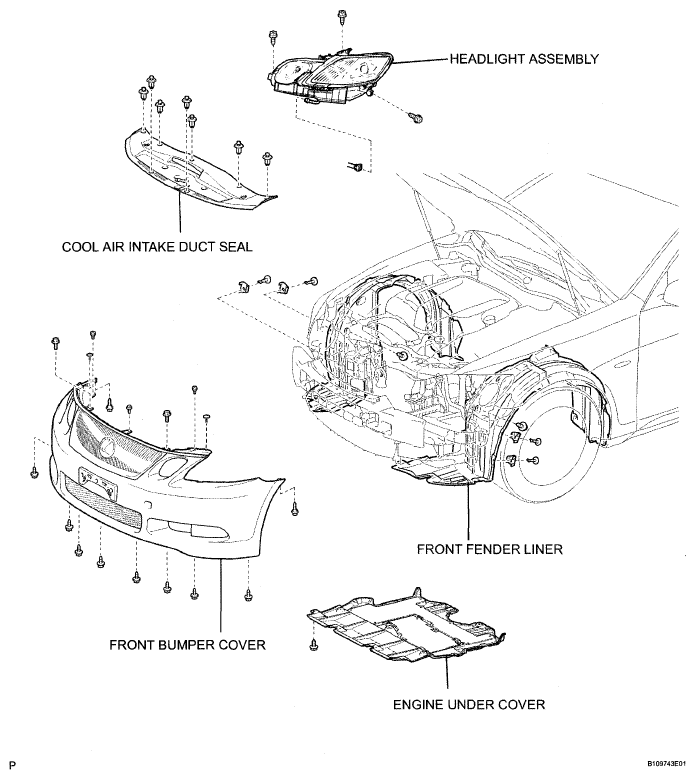

Fig 1: Identifying Headlight Assembly Components (1 Of 2)
G05298922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

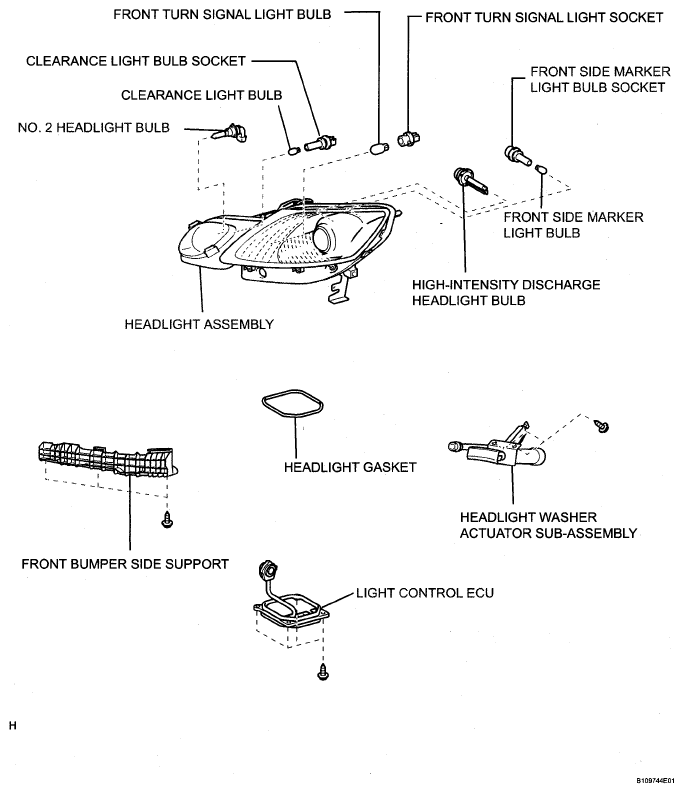

Fig 2: Identifying Headlight Assembly Component (2 Of 2)
G05298923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
