Headlight Assembly: Adjustment

HINT:

When adjusting the headlights, refer to the illustration below.

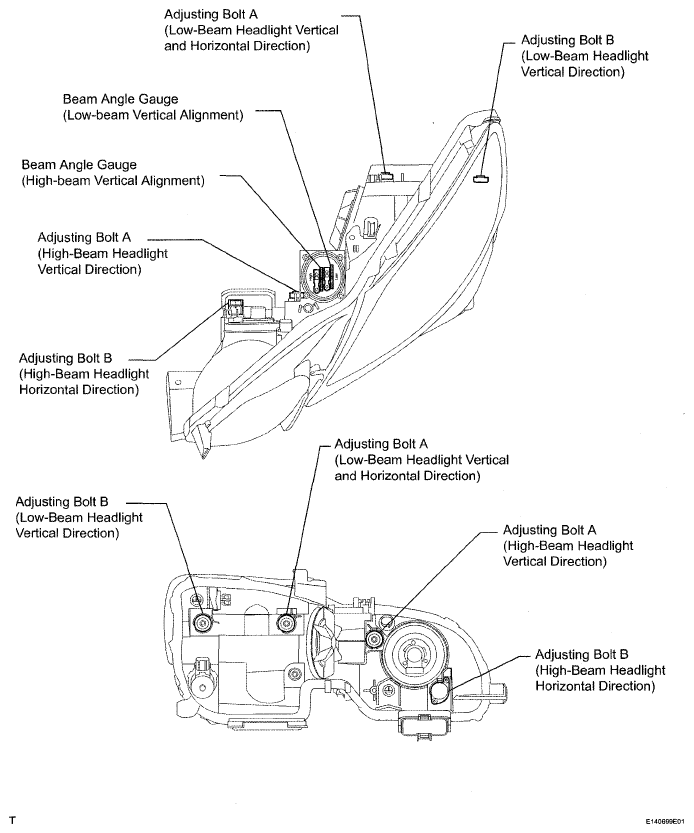

Fig 1: Identifying Headlight Adjusting Bolt

VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT
1. Prepare the vehicle according to the following conditions:
  - Be sure that the body around the headlight is not deformed.
  - Park the vehicle on a level surface.
  - The driver is sitting in the driver's seat and the vehicle is ready to be driven (fuel tank is full).
  - Bounce the vehicle several times.
HEADLIGHT AIMING ADJUSTMENT (LOW BEAM)
1. Adjust the aim vertically:
  If the bubble is out of the acceptable range of the beam angle gauge, adjust it using bolt A and B.

  HINT:
  - Turn bolt A and B equally and in the same direction.
  - The bubble of the gauge should not deviate from the center of the gauge by more than 2 marks to either side of the gauge.
2. Adjust the aim horizontally:
  If the edge of the lens not match "0" mark, adjust the lens using bolt A.

  HINT:

  After adjusting the headlight in the vertical direction, check that the light has been shifted from the adjusted position in the horizontal direction.
Fig 2: Identifying Bubble Acceptable Range Of Beam Angle Gauge (Low Beam)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HEADLIGHT AIMING ADJUSTMENT (HIGH BEAM)
1. Adjust the aim vertically:
  1. If the bubble is out of the acceptable range of the beam angle gauge, adjust it using bolt A.
    HINT:

    The bubble of the gauge should not deviate from the center of the gauge by more than 2 marks to either side of the gauge.
  Fig 3: Identifying Bubble Acceptable Range Of Beam Angle Gauge (High Beam)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the aim horizontally:
  1. the red line is out of the acceptable range of the beam angle gauge, adjust it using bolt B.
    HINT:

    The red line should not deviate by more than 2 blue lines to either side of the gauge.
