Stereo Component Speaker: Components

Fig 1: Roof Speaker Replacement Components With Torque Specifications (1 Of 2)
G05299604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

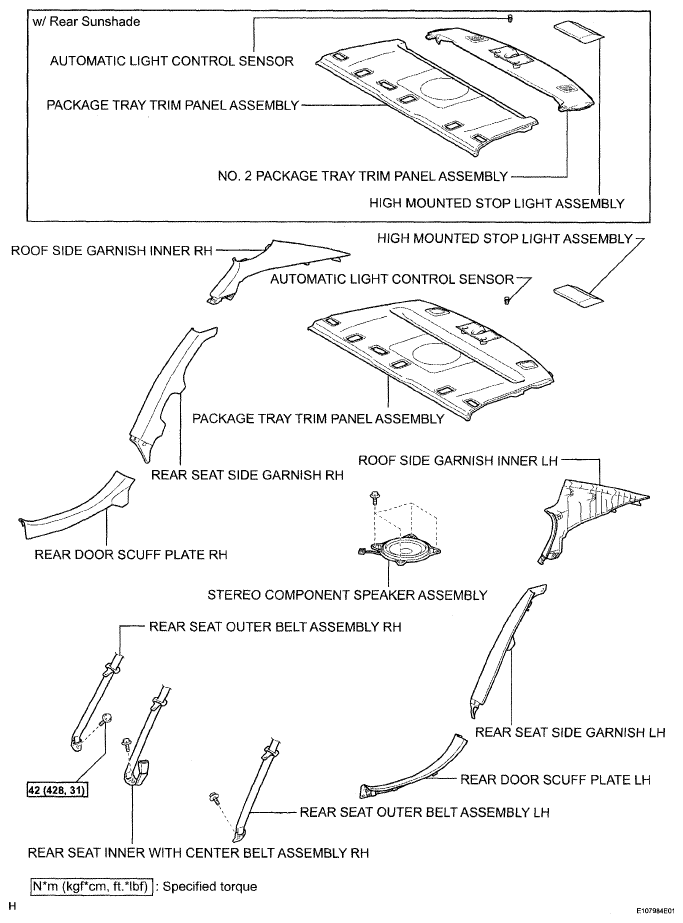

Fig 2: Stereo Component Speaker Replacement Components With Torque Specifications
G05299674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
