Stereo Component Amplifier: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
  3. REMOVE LUGGAGE COMPARTMENT COVER RH
  4. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH AMPLIFIER BRACKET

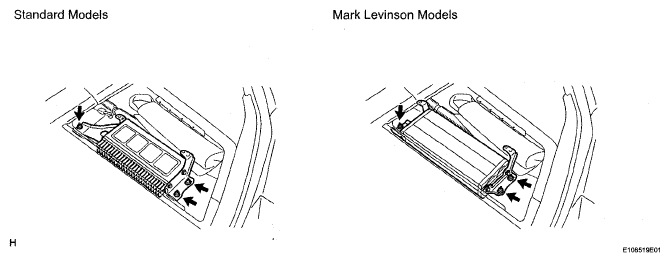

    Fig 1: Locating Stereo Component Amplifier Nuts
    G05299598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connectors.
    2. Remove the 3 nuts and amplifier with bracket.
  5. REMOVE NO. 2 AMPLIFIER BRACKET
    1. Remove the 2 screws and bracket.
    Fig 2: Locating No 2 Amplifier Bracket Screws
    G05299599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 AMPLIFIER BRACKET
    1. Remove the 2 screws and bracket.
      Fig 3: Locating No 1 Amplifier Bracket Screws
      G05299600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
