Stereo Component Amplifier: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. INSTALL NO. 2 AMPLIFIER BRACKET
   1. Install the bracket's aligning protrusions labeled A to the amplifier.
   2. Install the 2 screws labeled B.
   Fig 1: Locating No 2 Amplifier Bracket Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL NO. 1 AMPLIFIER BRACKET
   1. Install the bracket's aligning protrusions labeled A to the amplifier.
   2. Install the 2 screws labeled B.
   Fig 2: Locating No 1 Amplifier Bracket Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH AMPLIFIER BRACKET

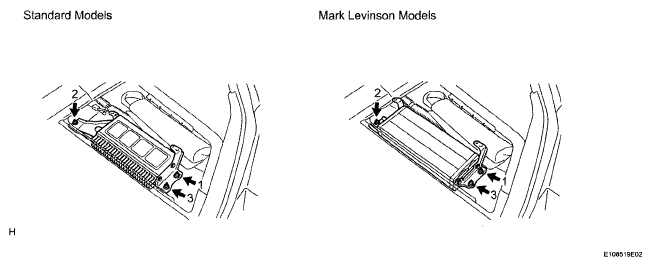

   Fig 3: Locating Stereo Component Amplifier Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the amplifier with the 3 nuts.

      HINT:

      Tighten the nuts in the order shown in the illustration.

4. INSTALL LUGGAGE COMPARTMENT COVER RH
5. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
   1. Perform initialization (See INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
