Steering Pad Switch Cable: Components

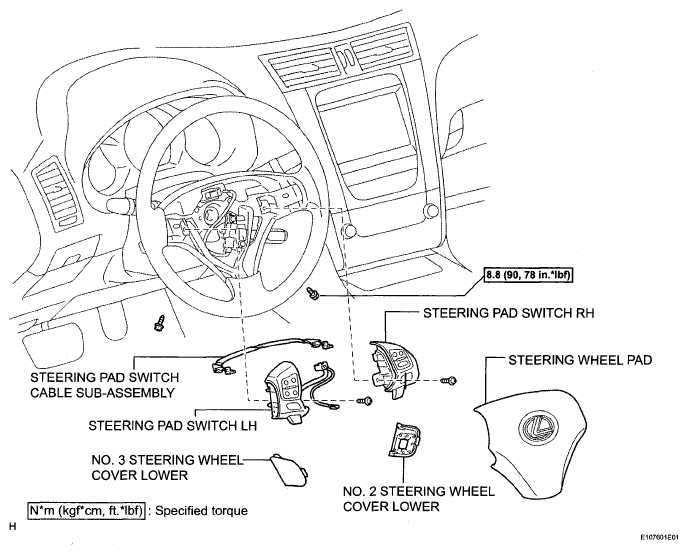

Fig 1: Steering Pad Switch Cable Replacement Components With Torque Specifications

G05299630

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
