Amplifier Antenna: Installation

  1. INSTALL AMPLIFIER ANTENNA ASSEMBLY
    1. Use white gasoline to clean the area on the glass where the antenna will be installed.
      NOTE: Do not use white gasoline to clean the antenna's contact points. Doing so may cause improper contact between the antenna and glass.

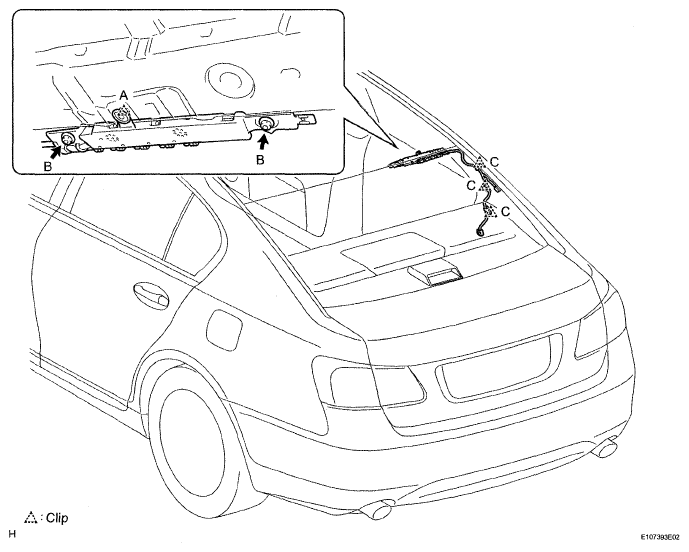

      Fig 1: Locating Amplifier Antenna Assembly Nuts
      G05299626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the antenna with the clip labeled A, and then install the antenna with the 2 nuts labeled B.

      Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

      NOTE:
      • Just before installing the antenna to the glass, remove the protective cover of the antenna's contact points.
      • When removing the protective cover of the antenna's contact points, make sure the cover does not touch the contact points.
      • Never touch the contact points after removing the protective cover.
      • After removing the protective cover, return it to the manufacturer for recycling.
      • Do not reuse the clip labeled A.
    3. Attach the 3 clips labeled C.
    4. Connect the connectors.
  2. INSTALL ROOF HEADLINING ASSEMBLY (See  INSTALLATION  )
  3. INSTALL VISOR HOLDER
  4. INSTALL LH VISOR ASSEMBLY (See  INSTALLATION  )
  5. INSTALL RH VISOR ASSEMBLY (See  INSTALLATION  )
  6. INSTALL VISOR BRACKET COVER (See  INSTALLATION  )
  7. INSTALL STEERING SPOT LIGHT ASSEMBLY (See  INSTALLATION  )
  8. INSTALL ASSIST GRIP ASSEMBLY
  9. INSTALL REAR ROOM LIGHT ASSEMBLY (See  INSTALLATION  )
  10. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (See  INSTALLATION  )
  11. INSTALL PERSONAL LIGHT ASSEMBLY (See  INSTALLATION  )
  12. INSTALL ROOF TOP GARNISH FRONT (See  INSTALLATION  )
  13. INSTALL INNER REAR VIEW MIRROR COVER
  14. INSTALL ROOF SIDE GARNISH INNER LH (See  INSTALLATION  )
  15. INSTALL ROOF SIDE GARNISH INNER RH (See  INSTALLATION  )
  16. INSTALL REAR SEAT SIDE GARNISH LH (See  INSTALLATION  )
  17. INSTALL REAR SEAT SIDE GARNISH RH (See  INSTALLATION  )
  18. INSTALL CENTER PILLAR GARNISH LH (See  INSTALLATION  )
  19. INSTALL CENTER PILLAR GARNISH RH (See  INSTALLATION  )
  20. INSTALL CENTER PILLAR GARNISH LOWER LH (See  INSTALLATION  )
  21. INSTALL CENTER PILLAR GARNISH LOWER RH (See  INSTALLATION  )
  22. INSTALL REAR DOOR SCUFF PLATE LH (See  INSTALLATION  )
  23. INSTALL REAR DOOR SCUFF PLATE RH (See  INSTALLATION  )
  24. INSTALL FRONT PILLAR GARNISH LH (See  INSTALLATION  )
  25. INSTALL FRONT PILLAR GARNISH RH (See  INSTALLATION  )
  26. INSTALL FRONT DOOR OPENING TRIM COVER LH (See  INSTALLATION  )
  27. INSTALL FRONT DOOR OPENING TRIM COVER RH (See  INSTALLATION  )
  28. INSTALL FRONT DOOR SCUFF PLATE LH (See  INSTALLATION  )
  29. INSTALL FRONT DOOR SCUFF PLATE RH (See  INSTALLATION  )
  30. INSTALL CONSOLE BOX (See  INSTALLATION  )
  31. INSTALL CONSOLE BOX REGISTER ASSEMBLY (See  INSTALLATION  )
  32. INSTALL CONSOLE BOX PLATE (See  INSTALLATION  )
  33. INSTALL INSTRUMENT PANEL FINISH PANEL END LH (See  INSTALLATION  )
  34. INSTALL INSTRUMENT PANEL FINISH PANEL END RH (See  INSTALLATION  )
  35. INSTALL CONSOLE UPPER PANEL ASSEMBLY (See  INSTALLATION  )
  36. INSTALL FRONT CONSOLE UPPER PANEL GARNISH (See  INSTALLATION  )
  37. INSTALL REAR SEATBACK ASSEMBLY (See  INSTALLATION  )
  38. INSTALL REAR SEAT HEADREST ASSEMBLY CENTER
  39. INSTALL REAR SEAT HEADREST ASSEMBLY LH AND RH
  40. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
  41. INSTALL FRONT SEAT ASSEMBLY (See  INSTALLATION  )
  42. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH (See  INSTALLATION  )
  43. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  44. PERFORM INITIALIZATION
    1. Perform initialization (See INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  45. INSPECT FRONT POWER SEAT CONTROL SYSTEM
    1. Inspect front power seat control system (See ON-VEHICLE INSPECTION ).
    2. Inspect front power seat control system (w/ seat position memory system) (See ON-VEHICLE INSPECTION ).
  46. INSPECT SEAT HEATER CONTROL
    1. Inspect seat heater control (See SEAT HEATER CONTROL ).
  47. INSPECT CLIMATE CONTROL SEAT SYSTEM
    1. Inspect climate control seat system (See SYSTEM DESCRIPTION ).
  48. INSPECT SEAT BELT WARNING SYSTEM
    1. Inspect seat belt warning system (See DATA LIST / ACTIVE TEST ).
