Headlight Beam Level Control ECU Power Source Circuit: Wiring Diagram

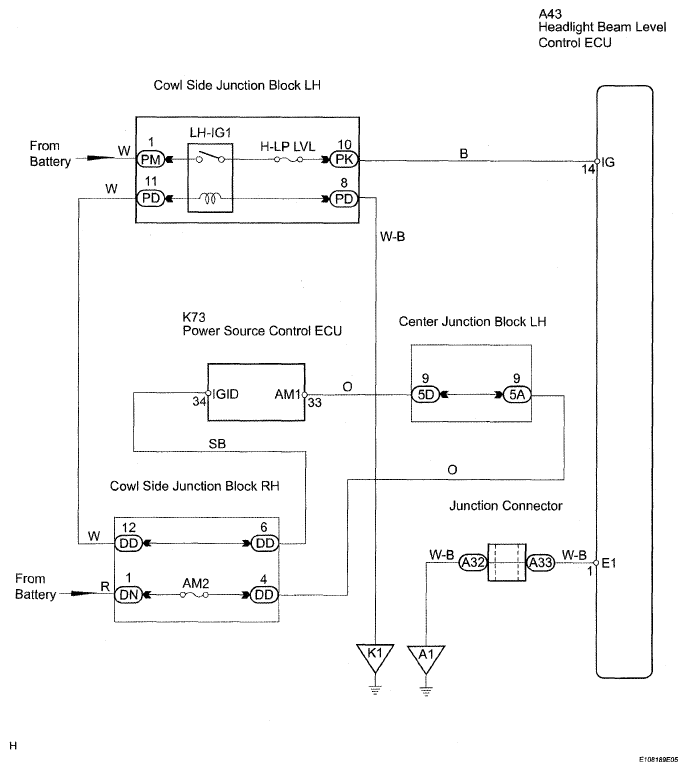

Fig 1: Headlight Beam Level Control ECU Power Source Circuit - Wiring Diagram

G05298906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
