Transmission Wire: Components: Notes

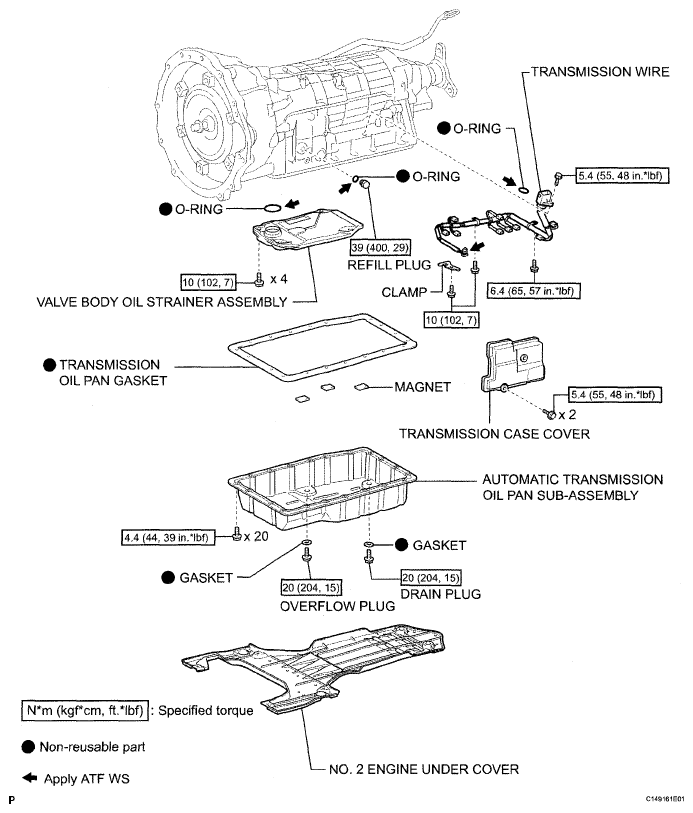

Fig 1: Transmission Wire Replacement Components With Torque Specifications

G05288198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
