Rear Door LH Entry Unlock Function does not Operate: Wiring Diagram

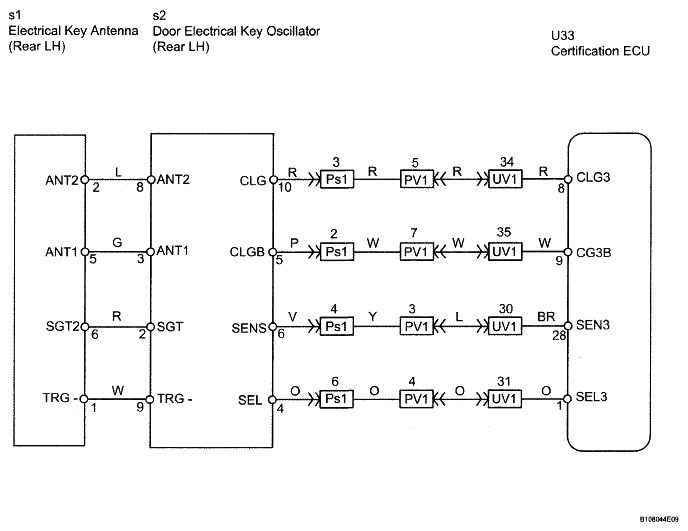

Fig 1: Door Electrical Key Oscillator Rear LH - Wiring Diagram

G05299244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
