Inspection Procedure

1. Remove the MPX-B from the engine room No. 1 relay block.
2. Measure the resistance of the fuses.

   Standard:

   Below 1 Ω

NG: REPLACE FUSE

OK: Go to next step

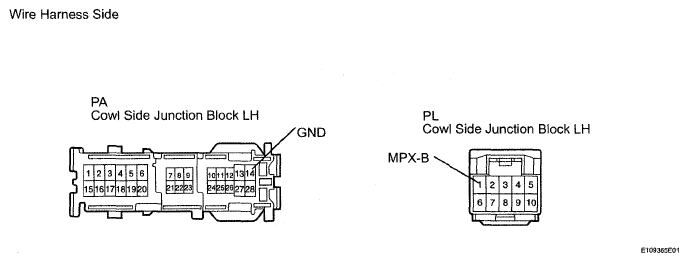

Fig 1: Identifying Cowl Side Junction Block LH Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the PL and PA J/B connectors.
2. Measure the resistance and voltage of the wire harness side connectors.

   Standard Resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   PA-14 (GND) - Body ground	Below 1 Ω

   Standard Voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   PL-1 (MPX-B) - Body ground	10 to 14 V

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

Fig 2: Identifying Cowl Side Junction Block LH And Position Control ECU And Switch Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the V3 ECU connector.
2. Disconnect the LC J/B connector.
3. Disconnect the b7 switch connector.
4. Measure the resistance of the wire harness side connectors.

Standard Resistance

Result

B: REPLACE COWL SIDE JUNCTION BLOCK LH AND WIRE HARNESS CONNECTOR

C: REPAIR OR REPLACE HARNESS AND CONNECTOR

A: REPLACE COWL SIDE JUNCTION BLOCK LH
