Telephone Microphone: Installation

INSTALL MICROPHONE ASSEMBLY
1. Install the microphone.
2. Install the cover with the 7 screws.
3. Connect the 2 connectors.

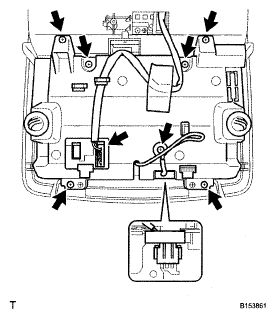

Fig 1: Locating Connectors And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PERSONAL LIGHT ASSEMBLY
1. Connect the connector.
2. Attach the 2 clips and 3 claws to install the personal light.
3. Install the 2 screws and 2 covers to the personal light.

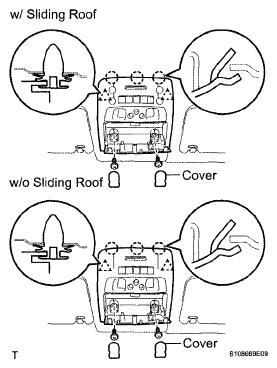

Fig 2: Identifying Clips And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT ROOF TOP GARNISH
1. Attach the 3 claws and 2 clips to install the top garnish.

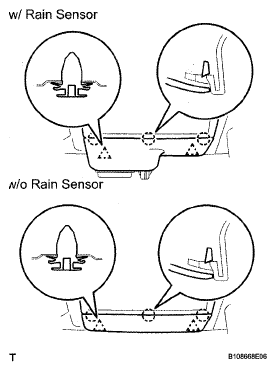

  Fig 3: Identifying Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push in the cover in the direction indicated by the arrow in the illustration. Then install the cover.

  Fig 4: Locating Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
