Seat Position Sensor: Removal

  1. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY (See  REMOVAL  )
  2. REMOVE FRONT SEAT ASSEMBLY (See  DISASSEMBLY  )
  3. REMOVE SEAT POSITION SENSOR
    1. Using a "Torx" socket wrench (T30), remove the "Torx" screw and seat position sensor with sensor protector.
    2. Disconnect the connector.

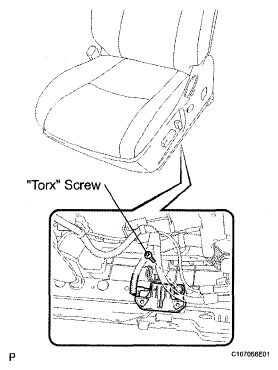

      Fig 1: Locating Seat Position Sensor Torx Screw With Sensor Protector
      G05298429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the seat slide position sensor protector from the seat position sensor.
