Front Passenger Airbag Assembly: Components

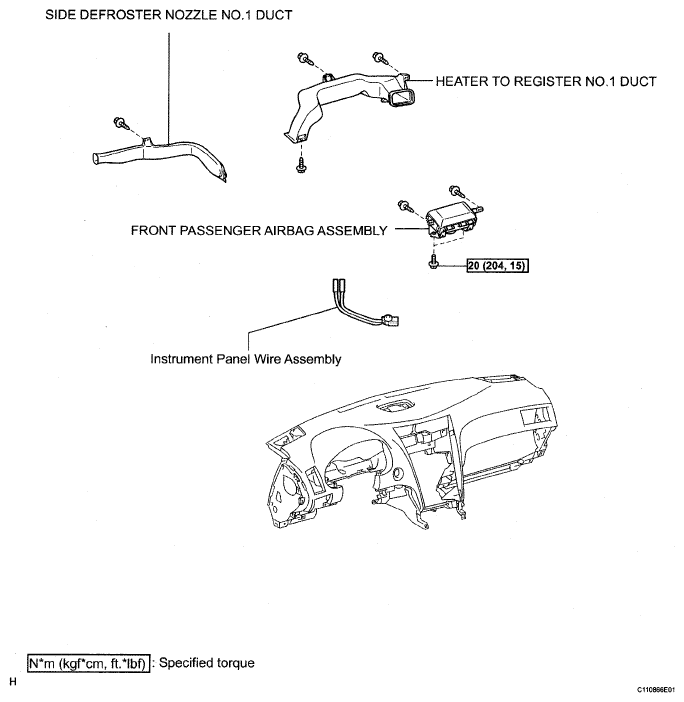

Fig 1: Front Passenger Airbag Assembly Replacement Components With Torque Specifications

G05298340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
