Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (2GR-FSE) - SFI System Introduction, Precautions, Troubleshooting, Symptoms Table, Terminals Of ECM, Diagnostic Trouble Code Chart
>>
SFI System
>>
Parts Location
Parts Location

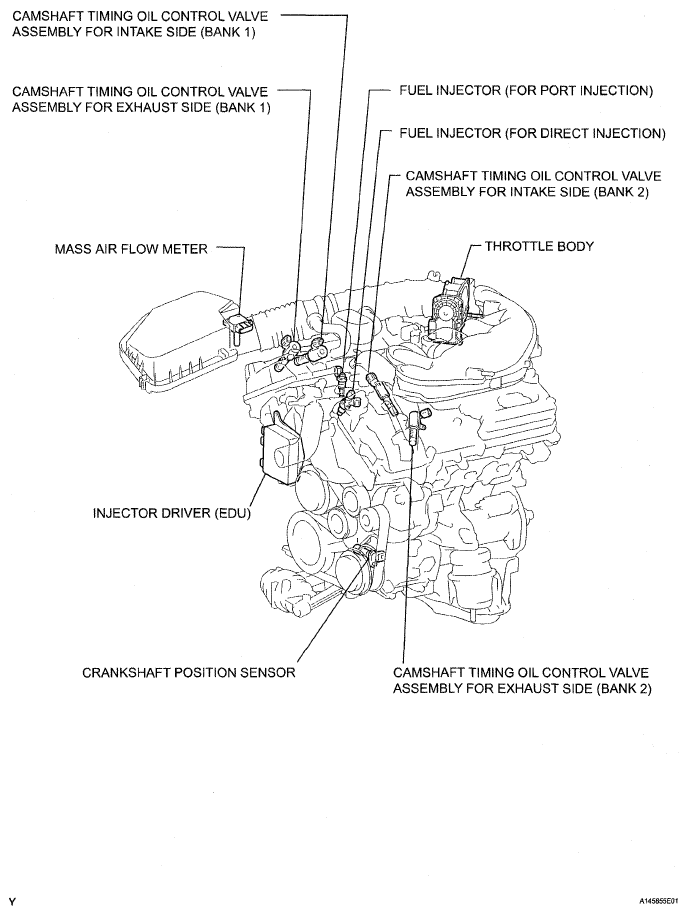

Fig 1: Identifying Engine Control System Components Location - 2GR-FSE (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

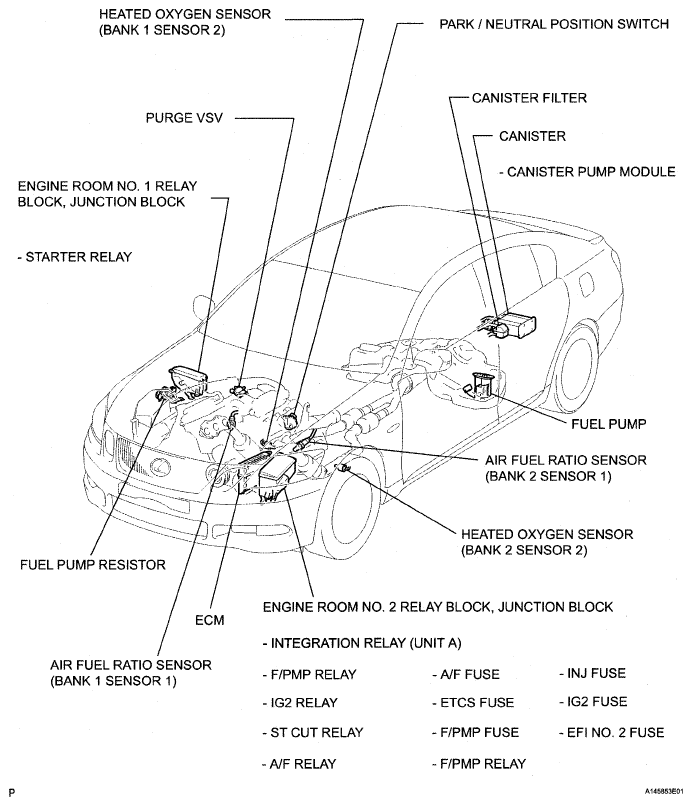

Fig 2: Identifying Engine Control System Components Location - 2GR-FSE (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

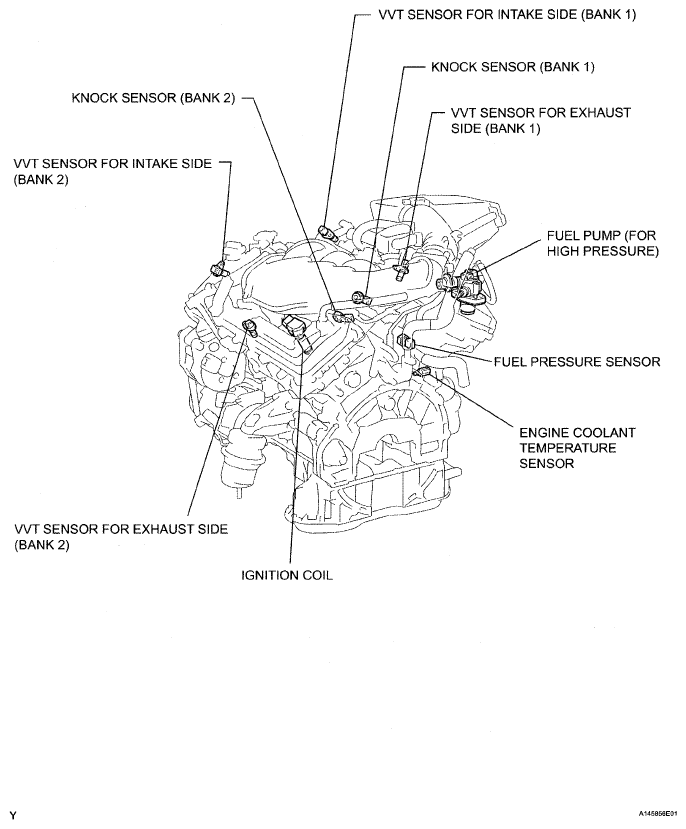

Fig 3: Identifying Engine Control System Components Location - 2GR-FSE (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Engine Control System Components Location - 2GR-FSE (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
