Inspection Procedure

1. Remove the IG2 relay from the engine room R/B No. 2.
2. Measure the resistance of the relay.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   3 - 5	10 kΩ or higher
   3 - 5	Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

Fig 1: Inspecting Ignition 2 Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RELAY

OK: Go to next step

1. Remove the IG2 relay from the engine room R/B No. 2.
2. Disconnect the K73 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   Engine room R/B No. 2 IG2 relay terminal 2 - K73-35 (IG2D)	Below 1 Ω
   Engine room R/B No. 2 IG2 relay terminal 1 - Body ground	Below 1 Ω

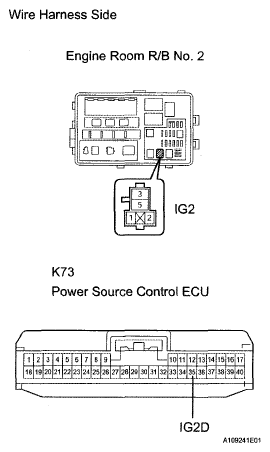

Fig 2: Identifying Engine Room R/B No. 2 - Power Source Control ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE POWER SOURCE CONTROL ECU
