Home >> Lexus >> 2007 >> GS 350 AWD >> Repair and Diagnosis >> Electrical >> Starter >> Starting (2GR-FSE) >> Engine Switch >> Components

Engine Switch: Components

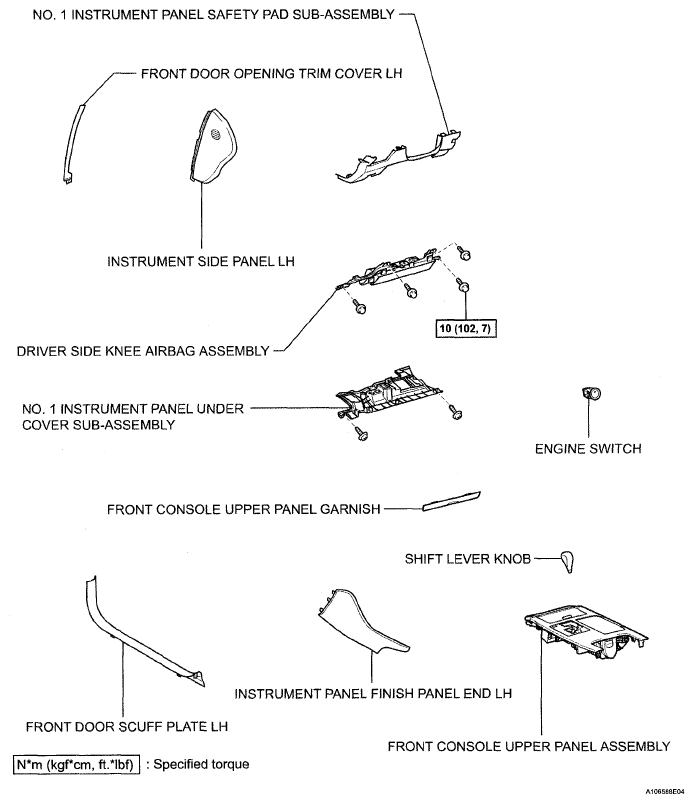

Fig 1: Engine Switch Replacement Components With Torque Specifications

G05287835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
