DTC B2235 Front Right Sensor Malfunction: Description

The No. 3 ultrasonic sensor (front right sensor) is installed on the front bumper.

The clearance warning ECU detects obstacles based on signals received from the front right sensor. If the front right sensor's circuit has an open, short or other malfunction, it will not function normally.

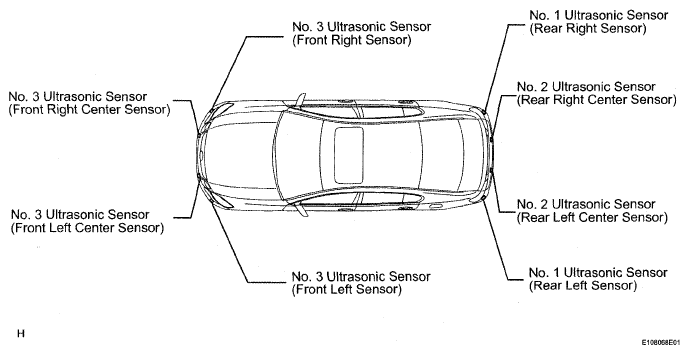

Fig 1: Front Left Center Sensor Malfunction Description Chart

DIAGNOSTIC TROUBLE CODE CHART

DTC No.	DTC Detection Condition	Trouble Area
B2235	Malfunction of No. 3 ultrasonic sensor (Front right sensor)	No. 3 ultrasonic sensor Wire harness Clearance warning ECU
