Speaker Circuit: Wiring Diagram

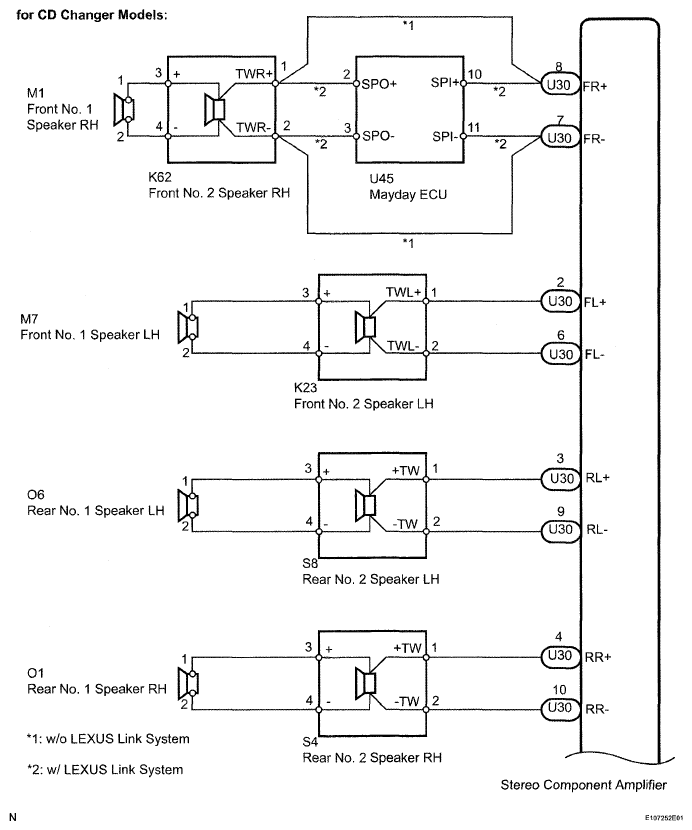

Fig 1: Speaker (For CD Changer Models) - Wiring Diagram (1 Of 2)
G05299453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

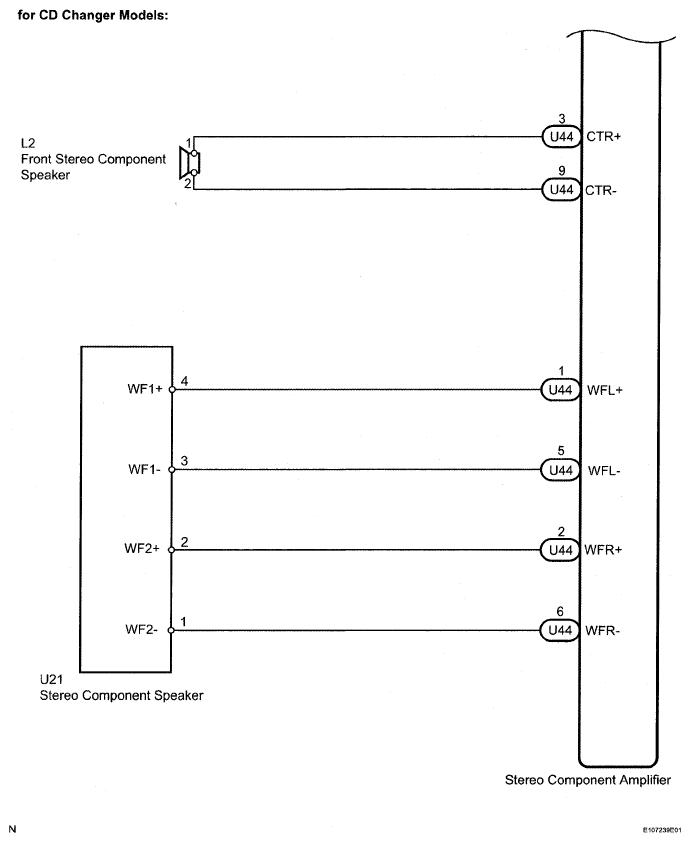

Fig 2: Speaker (For CD Changer Models) - Wiring Diagram (2 Of 2)
G05299454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

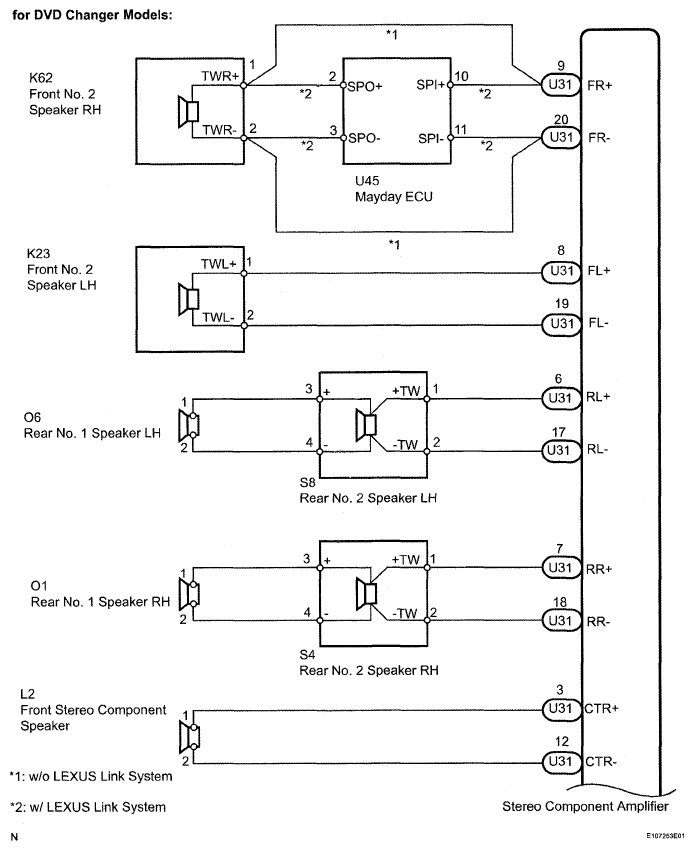

Fig 3: Speaker (For DVD Changer Models) - Wiring Diagram (1 Of 2)
G05299455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

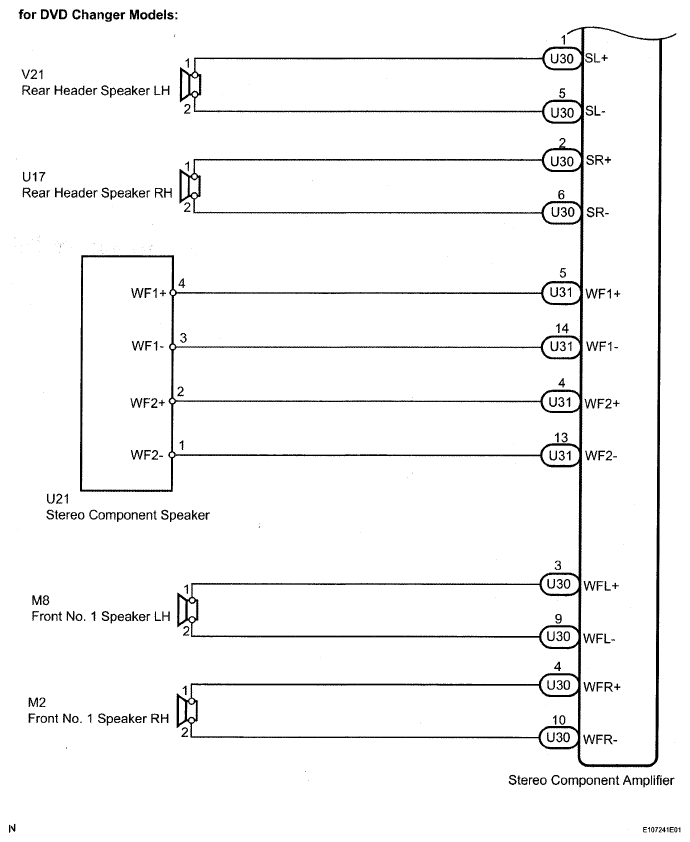

Fig 4: Speaker (For DVD Changer Models) - Wiring Diagram (2 Of 2)
G05299456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
