Inspection Procedure

1. Disconnect the K54 receiver connector.
2. Disconnect the U29 amplifier connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   U29-3 (L+) - K54-9 (L+)	Below 1 Ω
   U29-2 (L-) - K54-19 (L-)	Below 1 Ω
   U29-5 (R+) - K54-8 (R+)	Below 1 Ω
   U29-4 (R-) - K54-18 (R+)	Below 1 Ω
   U29-3 (L+) - Body ground	10 kΩ or higher
   U29-2 (L-) - Body ground	10 kΩ or higher
   U29-5 (R+) - Body ground	10 kΩ or higher
   U29-4 (R-) - Body ground	10 kΩ or higher

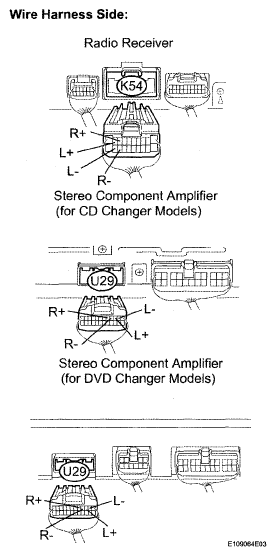

Fig 1: Disconnecting K54 Receiver Connector And U29 Amplifier Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE
