Steering Control ECU Communication Stop Mode: Wiring Diagram

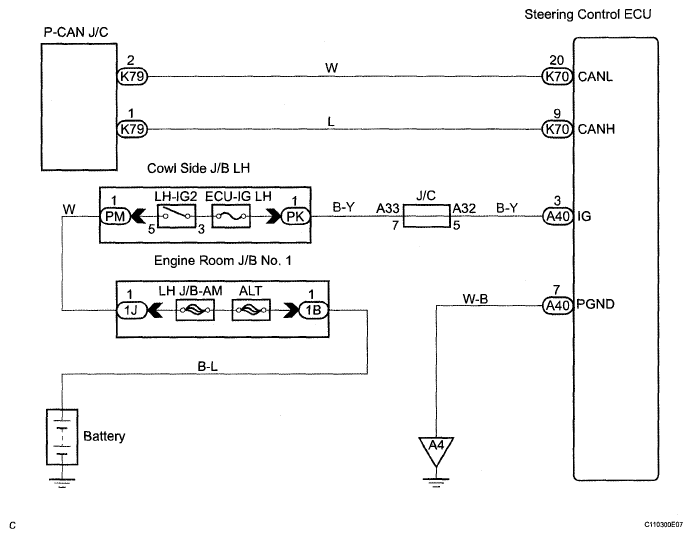

Fig 1: Steering Control ECU Communication Stop Mode - Wiring Diagram

G05301371

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
