Rear Door RH Entry Unlock Function does not Operate: Wiring Diagram

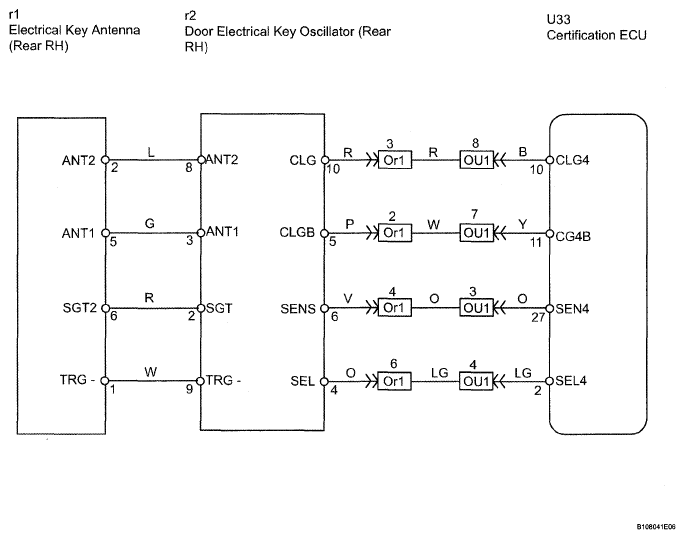

Fig 1: Entry Unlock Function Does Not Operate On Rear Door RH - Wiring Diagram

G05299248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
