Home >> Lexus >> 2007 >> GS 350 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Door Lock >> Smart Access System With Push-Button Start >> Front Passenger Side Door Entry Unlock Function does not Operate >> Wiring Diagram

Front Passenger Side Door Entry Unlock Function does not Operate: Wiring Diagram

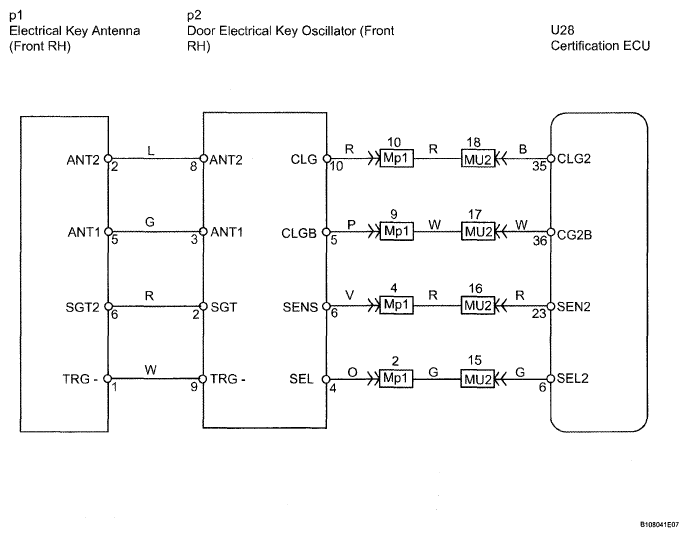

Fig 1: Front Door Electrical Key Oscillator - Wiring Diagram

G05299240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
