Transmission Control Switch Circuit: Wiring Diagram

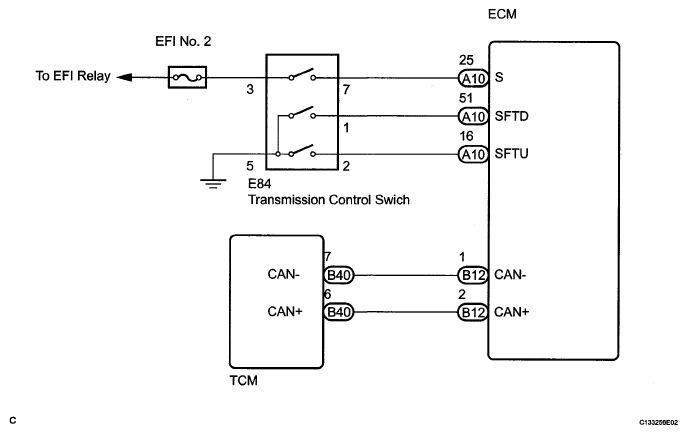

Fig 1: Transmission Control Switch - Wiring Diagram

G05249533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
