Wireless Door Lock Customization Change (EL011-06)

Publication date: 2006-10-03
Reference number: EL011-06

WIRELESS DOOR LOCK CUSTOMIZATION CHANGE

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL011-06, Date of Issue: October 03, 2006

LEXUS:	2007 ES 350
Section:	ELECTRICAL
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

The wireless door lock customizable function changes the time the doors relock after the doors have been unlocked with the wireless door lock. The "AUTO LOCK TIME" function has been changed to include 30S/60S/120S/OFF settings. This customizable feature can be changed by going to Wireless Door Lock under the customize menu of the Diagnostic Tester.

Applicable Vehicles

2007 model year ES 350 vehicles.

Required SSTs

REQUIRED SSTS

ITEM NO.

SPECIAL SERVICE TOOLS (SSTs)

PART NUMBER

QTY

DRW⁽²⁾

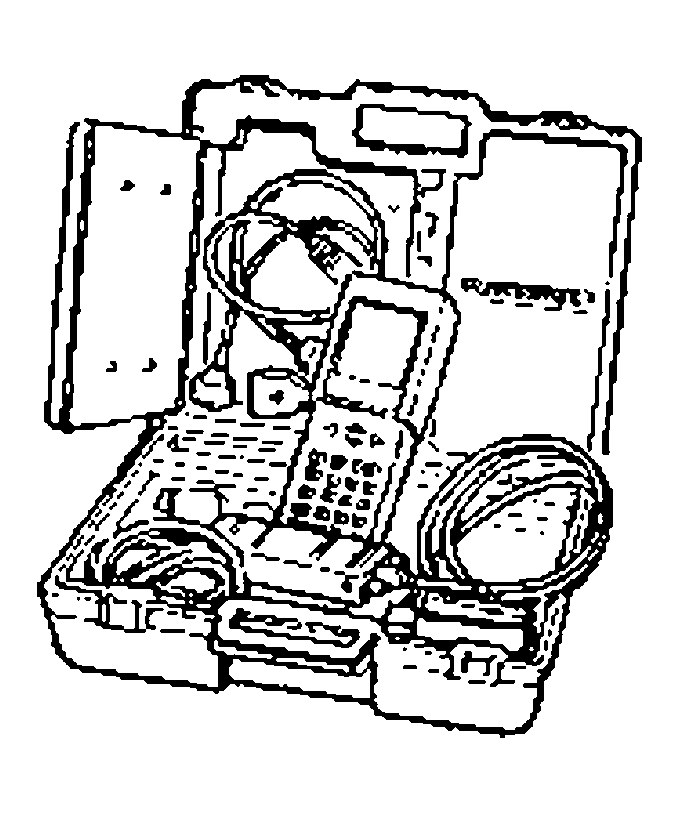

Lexus Diagnostic Tester Kit ⁽¹⁾

NOTE:

All components from this kit/set are required.
12 Megabyte Diagnostic Tester Program Card (P/N 01002593-005) with version 13.4a Software (or later) is required.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LEX220036

CAN Interface Module Kit ⁽¹⁾

NOTE:

All components from this kit/set are required.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

01002744

⁽¹⁾	Essential SSTs.

⁽²⁾	Drawer number in SST Storage System.

NOTE: Additional Diagnostic Tester Kits, CAN Interface Modules, Program Cards, or other SSTs may be ordered by calling SPX/OTC at 1-800-933-8335.

AUTO LOCK TIME Settings

AUTO LOCK TIME SETTINGS

CURRENT SETTING	NEW SETTING
30S/60S (Default: 60S)	30S/60S/120S/OFF (Default: 60S)

Confirmation Procedure

Confirm the changes on the customization screen of the Diagnostic Tester.

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-
