Inspection Procedure

HINT:

Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction (See FREEZE FRAME DATA ).

  1. CHECK DTC OUTPUT
    1. Connect the intelligent tester to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the intelligent tester on.
    4. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
    5. Read the DTCs.

      Result

      RESULT REFERENCE

      Display (DTC output) Proceed to
      P0110 A
      P0112 B
      P0113 C

    B: Go to step   6

    C: Go to step   4

    A: Go to next step

  2. READ VALUE OF INTAKE AIR TEMPERATURE SENSOR (INTAKE AIR)
    1. Connect the intelligent tester to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the tester on.
    4. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
    5. Read the value displayed on the tester.

      Standard:

      Same as actual Intake Air Temperature (IAT).

      Result

      RESULT REFERENCE

      Temperature Displayed Proceed to
      -40°C (-40°F) A
      140°C (284°F) or higher B
      Same as actual IAT C

      HINT:

      • If there is an open circuit, the intelligent tester indicates 40°C (-40°F).
      • If there is a short circuit, the intelligent tester indicates 140°C (284°F) or higher.

    B: Go to step   5

    C: CHECK FOR INTERMITTENT PROBLEMS (See  PROBLEM SYMPTOMS TABLE  )

    A: Go to Next Step

  3. CHECK MASS AIR FLOW METER (CHECK FOR OPEN IN SENSOR)
    1. Confirm good connection of the Mass Air Flow (MAF) meter.
    2. Disconnect the B33 MAF meter connector.

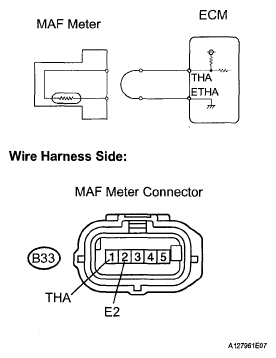

      Fig 1: Identifying B33 MAF Meter Connector Terminals
      G05247651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect terminals THA and E2 of the MAF meter wire harness side connector.
    4. Connect the intelligent tester to the DLC3.
    5. Turn the engine switch on (IG).
    6. Turn the tester on.
    7. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
    8. Read the value displayed on the tester.

      Standard:

      140°C (284°F) or higher

    9. Reconnect the MAF meter connector.

    OK: REPLACE MASS AIR FLOW METER (See  REMOVAL  )

    NG: Go to Next Step

  4. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
    1. Disconnect the B33 MAF meter connector.
    2. Disconnect the B12 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE REFERENCE TABLE (CHECK FOR OPEN)

      Tester Connection Specified Condition
      THA (B12-71) - THA (B33-1) Below 1 Ω
      ETHA (B12-74) - E2 (B33-2) Below 1 Ω

      Standard resistance (Check for short)

      RESISTANCE REFERENCE (CHECK FOR SHORT)

      Tester Connection Specified Condition
      THA (B12-71) or THA (B33-1) - Body ground 10 kΩ or higher
      ETHA (B12-74) or E2 (B33-2) - Body ground 10 kΩ or higher

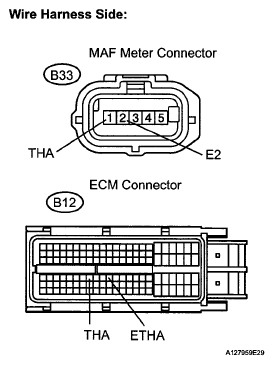

      Fig 2: Identifying B12 ECM Connector Terminal & B33 MAF Meter Connector Terminal
      G05247652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the MAF meter connector.
    5. Reconnect the ECM connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE ECM (See  REMOVAL  )

  5. CHECK MASS AIR FLOW METER (CHECK FOR SHORT IN SENSOR)
    1. Disconnect the B33 MAF meter connector.
    2. Connect the intelligent tester to the DLC3.
    3. Turn the engine switch on (IG).
    4. Turn the tester on.
    5. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
    6. Read the value displayed on the tester.

      Standard:

      -40°C (-40°F) or higher

    7. Reconnect the MAF meter connector.
      Fig 3: Identifying B33 MAF Meter Connector Circuit Diagram
      G05247653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE MASS AIR FLOW METER (See  REMOVAL  )

    NG: Go to Next Step

  6. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER- ECM)
    1. Disconnect the B33 MAF meter connector.
    2. Disconnect the B12 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE TABLE

      Tester Connection Specified Condition
      THA (B12-71) or THA (B33-1) - Body ground 10 kΩ or higher

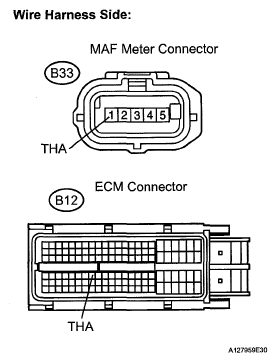

      Fig 4: Identifying B33 MAF Meter Connector Terminal & B12 ECM Connector Terminal
      G05247654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the MAF meter connector.
    5. Reconnect the ECM connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE ECM (See  REMOVAL  )
